Lattice Solutions

IP Core

USB 2.0/3.2 IP Core

Lattice USB 2.0/3.2 IP Core provides a solution to interface with a USB host and can be targeted to the Lattice CrossLink-NX FPGA Devices.

CrossLink-NX

USB, USB2, USB3, AHB, AHB-L, AHB-Lite, AXI, I2C, SPI, JTAG, LVDS, SLVS, FTDI

IP Core

​​eSPI Target IP Core​

​​Lattice eSPI Target IP Core is compliant with the Intel eSPI specifications & has its own virtual wire channel in the user interface.​

MachXO5-NX, Mach-NX, MachXO3D, MachXO3, MachXO2

APB, AHB-Lite, Lattice Sentry

IP Core

PCI Express for Nexus FPGAs

The Lattice PCIe IP Core provides a flexible, high-performance, easy-to-use Transaction Layer Interface to the PCI Express Bus.

CrossLink-NX, Certus-NX, CertusPro-NX, MachXO5-NX

APB, AHB, AHB-Lite, RTL, PCI, PCIe, Bus Controllers, Defense, Automotive, PCIe Bundle, SDR

IP Core

RISC-V MC CPU IP Core

The Lattice RISC-V MC CPU soft IP contains a 32-bit RISC-V processor core and optional submodules – Timer and Programmable Interrupt Controller (PIC).

MachXO3D, Certus-NX, CrossLink-NX, Avant-E, MachXO5-NX, CertusPro-NX, MachXO3, MachXO2, Avant-G, Avant-X

AHB-Lite, Soft Processor, RISC-V, Lattice Propel, TOR Switch, Defense, Automotive, SDR

IP Core

RISC-V SM CPU IP Core

Lattice RISC-V SM CPU IP core supports the RV32I instruction set, external interrupt, and debug feature, which is JTAG – IEEE 1149.1 compliant.

Avant-E, MachXO5-NX, Certus-NX, CertusPro-NX, CrossLink-NX, MachXO3D, MachXO3, MachXO2, Avant-G, Avant-X

AHB-Lite, Soft Processor, RISC-V, Lattice Propel, TOR Switch, Defense, Automotive, SDR

IP Core

RISC-V RX CPU IP Core

Lattice RISC-V RX IP processes data and instructions while monitoring the external interrupts, using 32-bit RISC-V processor core and several submodules.

Avant-E, MachXO5-NX, Certus-NX, CertusPro-NX, CrossLink-NX, Avant-G, Avant-X

AHB-Lite, Soft Processor, RISC-V, RTOS, Lattice Propel, Defense, Automotive

IP Core

PCI Express for Avant FPGAs

The Lattice PCIe X8 IP Core provides a flexible, high-performance, easy-to-use Transaction Layer Interface to the PCI Express Bus.

Avant-G, Avant-X

AXI, AHB, AHB-Lite, RTL, PCIe, Bus Controllers, Defense, Automotive, Lattice Avant, PCI, PCIe Bundle, SDR

IP Core

RISC-V Nano CPU IP Core

The RISC-V Nano CPU IP contains a 32-bit RISC-V processor core that supports the RV32I instruction set and a lightweight interrupt merge controller.

Avant-E, Avant-G, Avant-X, MachXO5-NX, CrossLink-NX, Certus-NX, CertusPro-NX

Soft Processor, RISC-V, Lattice Propel, Lattice Diamond, Lattice Radiant, Defense, AHB-Lite

IP Core

Lattice Sentry PLD Interface IP Core

Lattice Semiconductor Customer Programmable Logic Devices (PLD)implements a bidirectional mailbox for sending and receiving messages.

Mach-NX, MachXO5-NX

AHB-Lite, APB, FPGA, RTL, Lattice Propel, PLD, Lattice Sentry, Lattice Sentry PFR IP Package, Security

IP Core

PIC IP Core

Lattice Semiconductor PIC soft IP with configurable 1~8 interrupt inputs and 32-bit AHB-L interface for Mach-NX FPGA

Mach-NX, MachXO5-NX

AHB-Lite, Lattice Propel, Lattice Diamond, Lattice Sentry, Lattice Sentry PFR IP Package, Security

IP Core

SFB Interface IP Core

SFB allow access to AHB-L CPLD block , management CPU recovery circuit and Flash sector for read/write.

Mach-NX

AHB-Lite, Lattice Propel, Lattice Sentry, Security, SPI, JTAG, Soc, CPLD, Lattice Sentry PFR IP Package

IP Core

Timer/Counter IP Core

The Lattice Semiconductor Timer/Counter IP is used to track timeouts in the system, and it generates an interrupt to the CPU when a timeout is detected.

Certus-NX, CrossLink-NX, Avant-E, Avant-G, Avant-X, CertusPro-NX, CrossLink, CrossLinkPlus, ECP5 / ECP5-5G, iCE40 LP/HX, iCE40 Ultra / UltraLite, iCE40 UltraPlus, LatticeECP2/M, LatticeECP3, LatticeSC/M, LatticeXP2, Mach-NX, MachXO, MachXO2, MachXO3, MachXO3D, MachXO5-NX, Certus-N2

AMBA, Lattice Propel, Lattice Diamond, Lattice Radiant, APB, AHB-Lite, Lattice Sentry, Lattice Sentry PFR IP Package, Security

IP Core

Lattice Sentry I2C Filter IP Core

Sentry I2C Filter IP Core provides an interface between I2C bus devices and a host processor while protecting against common I2C bus vulnerabilities.

Mach-NX, MachXO3D, MachXO5-NX

I2C, AHB-Lite, AHB-L, Lattice Propel, Lattice Sentry, Security, AMBA, FPGA, SMBus, RoT, Lattice Diamond, Lattice Sentry PFR IP Package, Defense

IP Core

AXI4 to AHB-Lite Bridge Module

Lattice Semiconductor AXI4 to AHB-Lite Bridge Module provides an interface between the high-speed AXI4 and AHB-Lite.

Certus-N2, Avant-E, Avant-G, Avant-X, CrossLink-NX, MachXO5-NX, Certus-NX, CertusPro-NX, ECP5 / ECP5-5G, LatticeECP3

AHB-L, AHB-Lite, AXI4, Lattice Avant, Lattice Propel

IP Core

AHB-Lite to AXI4 Bridge IP Core

The Lattice AHB-Lite to AXI4 Bridge IP Core is used for interfacing one AHB-Lite Manager and one AXI4 Subordinate.

Certus-N2, Avant-E, Avant-G, Avant-X, CrossLink-NX, MachXO5-NX, Certus-NX, CertusPro-NX, ECP5 / ECP5-5G, LatticeECP3

AHB-L, AHB-Lite, AXI4, Lattice Avant

IP Core

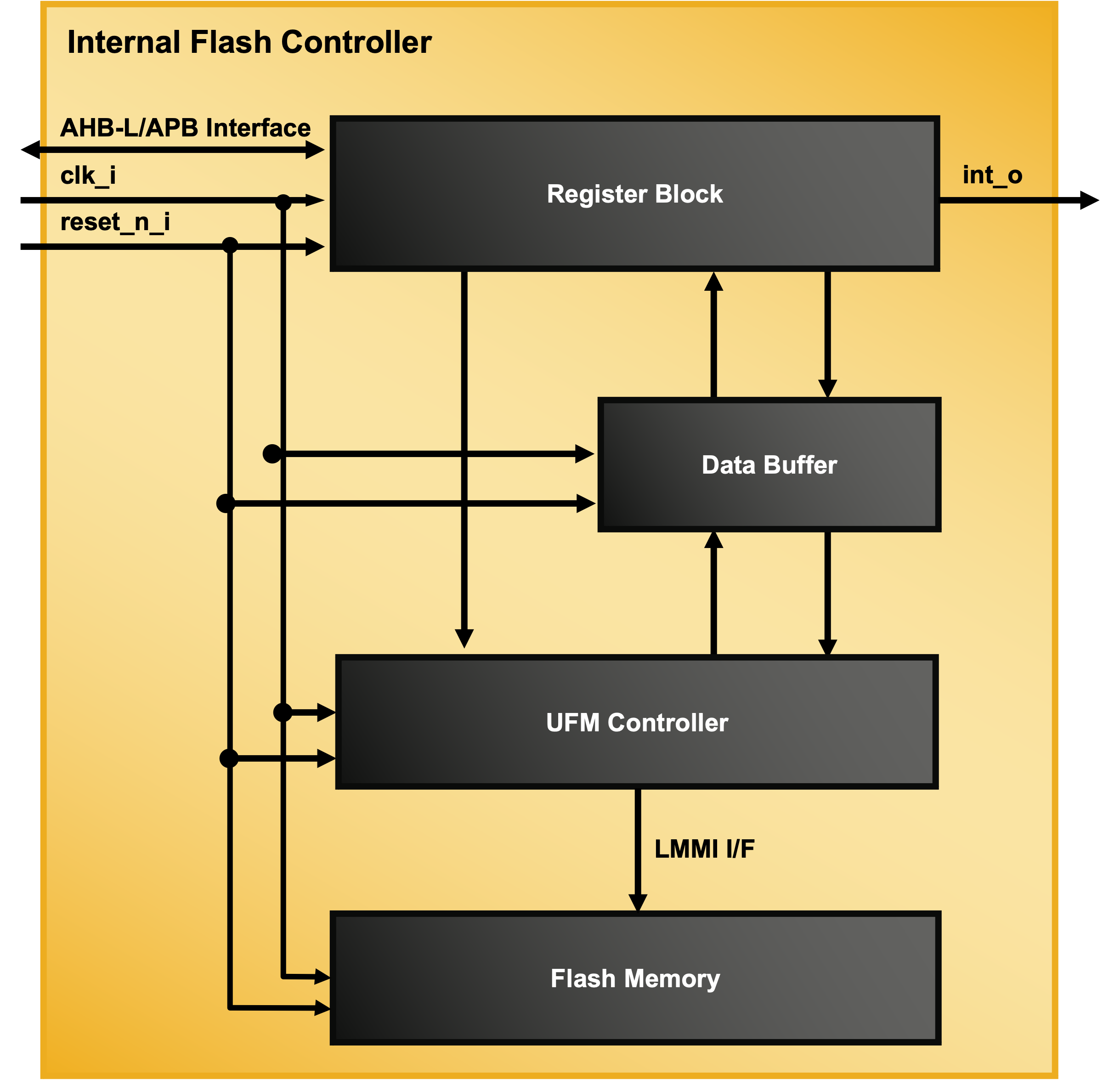

Internal Flash Controller IP Core

​​The Lattice Internal Flash Controller for MachXO5-NX IP Core has a system bus interface to access the registers.​

MachXO5-NX

AHB, AHB-Lite, Security, Automotive, Flash

IP Core

RISC-V Single Core Linux (SCL) Processor

RISC-V Single Core Linux processor includes everything required for running Linux on Lattice FPGAs and supports the RV32IMAC and RV32GC architecture.

CertusPro-NX

RISC-V, Soft Processor, DDR Memories, AHB, AHB-Lite, AMBA, AXI, GPIO Control, UART

IP Core

SLS I2C Master IP Core

Ease to use I2C Master IP core from SLS. It comes with ready to use HAL driver, reference design and various documents.

CrossLink-NX

RISC-V, AHB-Lite, I2C

IP Core

SPI Flash Memory Controller IP Core

The SPI Flash Memory Controller IP Core provides an industry-standard interface between a CPU and an off-chip SPI flash memory device.

CertusPro-NX, Certus-NX, CrossLink-NX, Avant-E, Avant-G, Avant-X, MachXO5-NX

SPI, SPI Flash, AHB-Lite, AHB, APB, Memory Controller, Automotive

IP Core

USB 2.0 Device Controller IP Core (USB20SF)

USB20SF IP core provides FIFO interface for Data Endpoints while AHB Lite interface for Control Endpoint. This IP core supports High Speed and Full Speed modes

CrossLink-NX

ARM, RISC-V, Soft Processor, FMC, AHB, AHB-Lite, AXI, Camera, ULPI, USB2
