Lattice Solutions

IP Core

RISC-V MC CPU IP Core

The Lattice RISC-V MC CPU soft IP contains a 32-bit RISC-V processor core and optional submodules – Timer and Programmable Interrupt Controller (PIC).

MachXO3D, Certus-NX, CrossLink-NX, Avant-E, MachXO5-NX, CertusPro-NX, MachXO3, MachXO2, Avant-G, Avant-X

AHB-Lite, Soft Processor, RISC-V, Lattice Propel, TOR Switch, Defense, Automotive, SDR

IP Core

RISC-V SM CPU IP Core

Lattice RISC-V SM CPU IP core supports the RV32I instruction set, external interrupt, and debug feature, which is JTAG – IEEE 1149.1 compliant.

Avant-E, MachXO5-NX, Certus-NX, CertusPro-NX, CrossLink-NX, MachXO3D, MachXO3, MachXO2, Avant-G, Avant-X

AHB-Lite, Soft Processor, RISC-V, Lattice Propel, TOR Switch, Defense, Automotive, SDR

IP Core

RISC-V RX CPU IP Core

Lattice RISC-V RX IP processes data and instructions while monitoring the external interrupts, using 32-bit RISC-V processor core and several submodules.

Avant-E, MachXO5-NX, Certus-NX, CertusPro-NX, CrossLink-NX, Avant-G, Avant-X

AHB-Lite, Soft Processor, RISC-V, RTOS, Lattice Propel, Defense, Automotive

IP Core

RISC-V Nano CPU IP Core

The RISC-V Nano CPU IP contains a 32-bit RISC-V processor core that supports the RV32I instruction set and a lightweight interrupt merge controller.

Avant-E, Avant-G, Avant-X, MachXO5-NX, CrossLink-NX, Certus-NX, CertusPro-NX

Soft Processor, RISC-V, Lattice Propel, Lattice Diamond, Lattice Radiant, Defense, AHB-Lite

IP Core

RISC-V I/O Physical Memory Protection (IOPMP) IP Core

RISC-V I/O Memory Protection IP protects the data in specific memory regions and allows the CPU to control external AXI manager access to AXI subordinates at run-time.

Avant-E, Avant-G, Avant-X, MachXO5-NX, CrossLink-NX, Certus-NX, CertusPro-NX

Soft Processor, RISC-V, Lattice Propel, Lattice Diamond, Lattice Radiant, Defense

Board

Lattice Sentry Demo Board for MachXO3D

A complete platform to help you develop and test a NIST 800-193-compliant PFR solution. Includes numerous features to enable debug, interface and expansion

MachXO3D

Soft Processor, SPI Flash, Raspberry Pi, Security, Lattice Sentry, UAVs

Board

Lattice Sentry Demo Board for Mach-NX

A complete platform to help you develop and test a NIST 800-193-compliant PFR solution. Includes numerous features to enable debug, interface and expansion

Mach-NX, ECP5 / ECP5-5G

UAVs, Defense, Soft Processor, SPI Flash, Raspberry Pi, Security, Lattice Sentry

IP Core

RISC-V Single Core Linux (SCL) Processor

RISC-V Single Core Linux processor includes everything required for running Linux on Lattice FPGAs and supports the RV32IMAC and RV32GC architecture.

CertusPro-NX

RISC-V, Soft Processor, DDR Memories, AHB, AHB-Lite, AMBA, AXI, GPIO Control, UART

IP Core

USB 2.0 Device Controller IP Core (USB20SF)

USB20SF IP core provides FIFO interface for Data Endpoints while AHB Lite interface for Control Endpoint. This IP core supports High Speed and Full Speed modes

CrossLink-NX

ARM, RISC-V, Soft Processor, FMC, AHB, AHB-Lite, AXI, Camera, ULPI, USB2

IP Core

​​USB 3.2 Gen 1 Device Controller IP Core (USB32SF)​

This IP core solution uses the FPGA’s built-in transceiver for USB 3.2 and ULPI PHY for USB 2.0. It supports SuperSpeed, High Speed and Full Speed modes.

CrossLink-NX, CertusPro-NX

ARM, RISC-V, Soft Processor, FMC, AHB, AHB-Lite, AXI, USB Type-C, USB3, Camera, Image Processing, MIPI

Board

KONDOR AX Development Board

ECP5 board for system design of HetNet, Industrial IoT, Cameras and Display applications

ECP5 / ECP5-5G

ARM, CPRI, CSI-2, Data Communication, DDR SDRAM, Fiberoptic, FMC, HDMI, LVDS Video, MIPI, PCIe, SD Memory, SERDES, Soft Processor

Board

​​tinyCLUNX33 System on Module​

​​1x1" production ready, tightly integrated System on Module using Lattice CrossLinkU-NX (LIFCL-33U) to significantly reduce customers Time to Market.​

CrossLink-NX

Lattice sensAI, RISC-V, Soft Processor, Breakout, PWM, LED Control, HyperRAM, SRAM, USB3, Camera, JPEG, Video Aggregation

Board

Pico-Ice

The Pico-Ice is a small, low-cost board with the Raspberry Pi Pico processor (RP2040) and a Lattice Semiconductor iCE40UP5K FPGA.​

iCE40 UltraPlus

Lattice sensAI, ARM, Soft Processor, PMOD, PWM, LED Control, Raspberry Pi, NOR Flash, SPI Flash, SRAM, USB Type-C

Board

UPduino v3.1

The UPDuino v3.1 is a small low-cost board featuring the Lattice iCE40 UltraPlus (ICE40UP5K) and an on-board FPGA programmer, flash, and LED with all FPGA pins.

iCE40 UltraPlus

Lattice sensAI, RISC-V, Soft Processor, Breakout, PWM, LED Control, Microphone, NOR Flash, SPI Flash, Parallel Video

IP Core

LatticeMico32 Open, Free 32-Bit Soft Processor

A 32-bit Harvard, RISC architecture soft microprocessor, available for free with an open IP core license. Many compatible modules and IP are available.

LatticeECP3, LatticeXP2, LatticeECP2/M

GPIO Control, Mico, Soft Processor, UART, Wishbone, TOR Switch, Defense

Reference Design

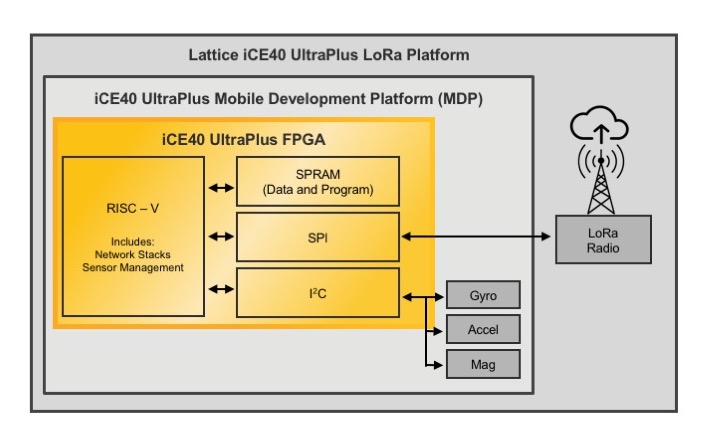

Long Range (LoRa) Wireless

Implement a LoRa compliant device using a tiny iCE40 UltraPlus FPGA, for low-power, low-footprint wireless communication over miles

iCE40 UltraPlus

I2C, LoRa, RISC-V, Soft Processor, SPI

Board

OrangeCrab

This tiny ECP5 board follows the slim feather board specification. Includes DDR3 memory and compatible with open source toolchains. Great for RISC-V development.

ECP5 / ECP5-5G

Community Sourced, SD Memory, DDR SDRAM, Soft Processor

IP Core

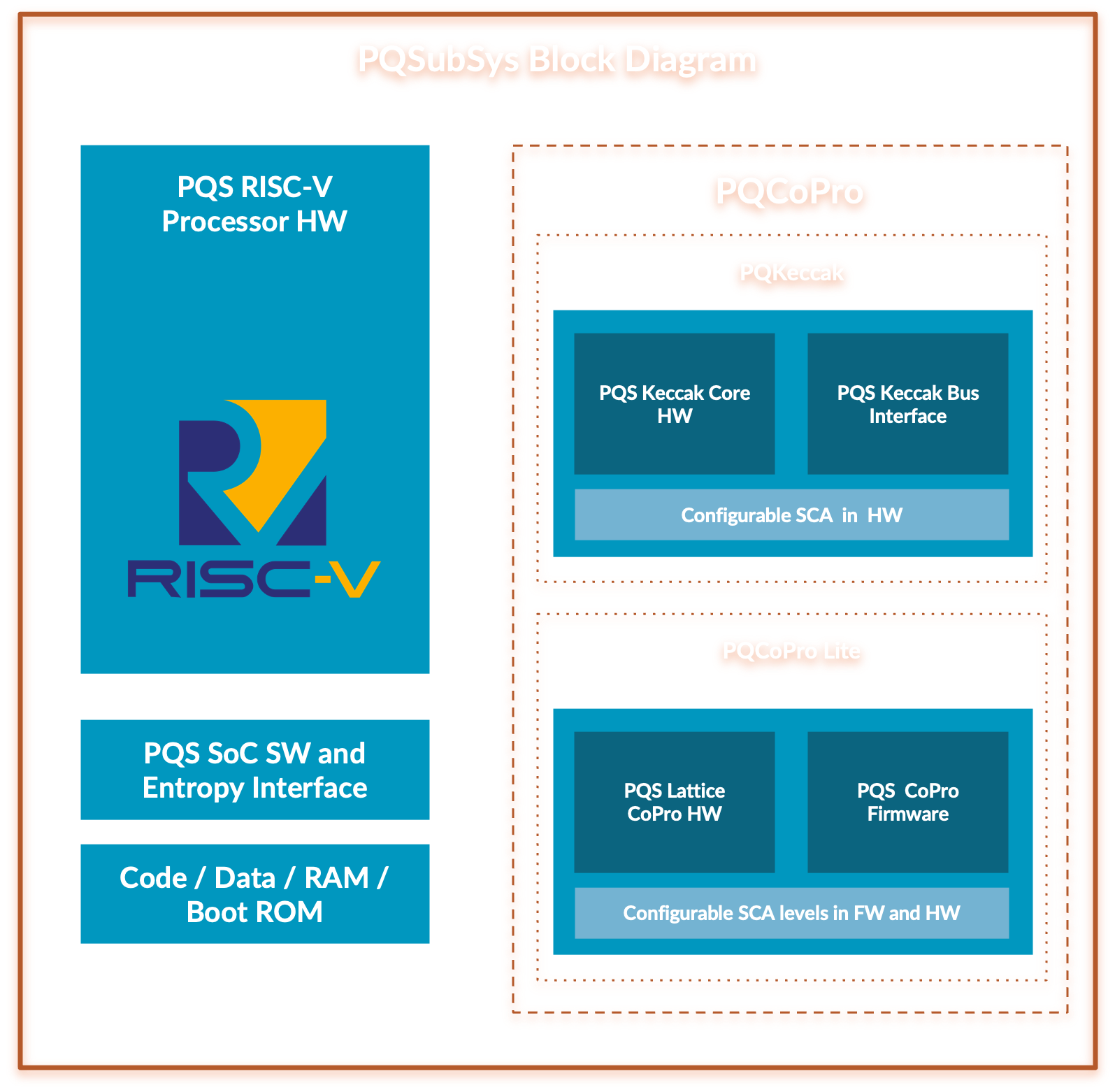

PQSubSys IP Core

SCA-Secured Post-Quantum Cryptography Subsystem for lattice based NIST algorithms (Kyber, Dilithium, SHA3, SHAKE, all levels).

CertusPro-NX

AXI, Encryption, NIST, Security, Post-Quantum Cryptography, RISC-V, Soft Processor

Reference Design

MachXO2 I2C Embedded Programming Access Firmware

Provides C code for interfacing to MachXO2 from a microcontroller, and RTL for implementing I2C between an external master and the MachXO2

MachXO2

I2C, Soft Processor

IP Core

Lattice Mico8 Open, Free Soft Microcontroller

8-bit microcontroller primarilyi targeted to the MachXO2 and MachXO3 families, but portable to other FPGAs. Full 18-bit wide instruction set and 32 registers

LatticeECP3, ECP5 / ECP5-5G, MachXO2, MachXO3

I2C, Mico, Soft Processor, SPI, UART, Wishbone, TOR Switch, Defense
