Lattice Solutions

Everything you need to quickly and easily complete your design

Share This Result >

Narrow Your Results



Solution Type
Device Support
Tags
Providers
Clear All
  • ​​tinyCLUNX33 System on Module​

    Board

    ​​tinyCLUNX33 System on Module​

    ​​1x1" production ready, tightly integrated System on Module using Lattice CrossLinkU-NX (LIFCL-33U) to significantly reduce customers Time to Market.​
    CrossLink-NX
    Lattice sensAI, RISC-V, Soft Processor, Breakout, PWM, LED Control, HyperRAM, SRAM, USB3, Camera, JPEG, Video Aggregation
    ​​tinyCLUNX33 System on Module​
  • Pico-Ice

    Board

    Pico-Ice

    The Pico-Ice is a small, low-cost board with the Raspberry Pi Pico processor (RP2040) and a Lattice Semiconductor iCE40UP5K FPGA.​
    iCE40 UltraPlus
    Lattice sensAI, ARM, Soft Processor, PMOD, PWM, LED Control, Raspberry Pi, NOR Flash, SPI Flash, SRAM, USB Type-C
    Pico-Ice
  • UPduino v3.1

    Board

    UPduino v3.1

    The UPDuino v3.1 is a small low-cost board featuring the Lattice iCE40 UltraPlus (ICE40UP5K) and an on-board FPGA programmer, flash, and LED with all FPGA pins.
    iCE40 UltraPlus
    Lattice sensAI, RISC-V, Soft Processor, Breakout, PWM, LED Control, Microphone, NOR Flash, SPI Flash, Parallel Video
    UPduino v3.1
  • Infrared Remote Tx/Rx Reference Designs

    Reference Design

    Infrared Remote Tx/Rx Reference Designs

    Implements an interface to IR receive and/or IR transmit. This includes PWM (pulse width modulation) timing and protocol conversion to an SPI /I2C bus
    iCE40 LP/HX, iCE40 Ultra / UltraLite, iCE40 UltraPlus
    I2C, Infrared LED, PWM, SPI, UAVs
    Infrared Remote Tx/Rx Reference Designs
  • SPI Slave to PWM Generation Reference Design

    Reference Design

    SPI Slave to PWM Generation Reference Design

    Sets the frequency and duty cycle of a PWM (Pulse-Width Modulator) using data from an external SPI master.
    MachXO2, iCE40 UltraPlus
    SPI, PWM, Home Control Appliances & Security, IoT & Wearables, Notebooks & PCs, Printers, Smart Toys & Robots, Tablets, Guidance Systems, Space
    SPI Slave to PWM Generation Reference Design

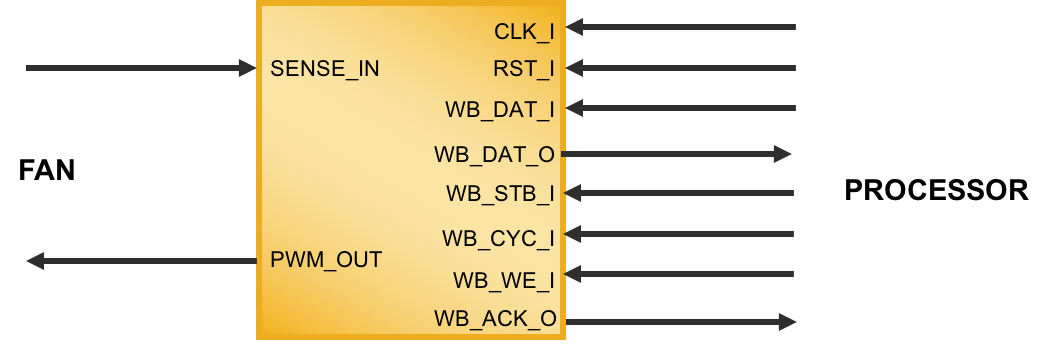

  • PWM Fan Controller - WISHBONE Compatible

    Reference Design

    PWM Fan Controller - WISHBONE Compatible

    Implements a PWM fan control using a PLD and a MOSFET circuit to provide the speed control of a simple 2-pin or 3-pin fan.
    ispMACH 4000ZE, MachXO, LatticeXP2, MachXO2, MachXO3, ispMACH 4000V/B/C/Z
    PWM, Wishbone, TOR Switch
    PWM Fan Controller - WISHBONE Compatible

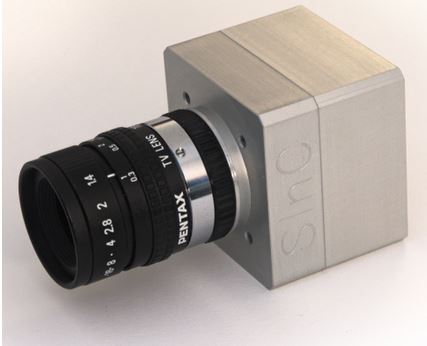

  • SInC Industrial Camera

    Board

    SInC Industrial Camera

    The SInC Digital Camera is a compact, robust Ethernet camera, designed for industrial applications: up to 4MP@30fps, high quality images, reduced form factor.
    ECP5 / ECP5-5G
    Ethernet, SERDES, PWM, DDR SDRAM, 3D Video, Camera, Debayer, Image Processing, LVDS Video, Video Tx/Rx
    SInC Industrial Camera

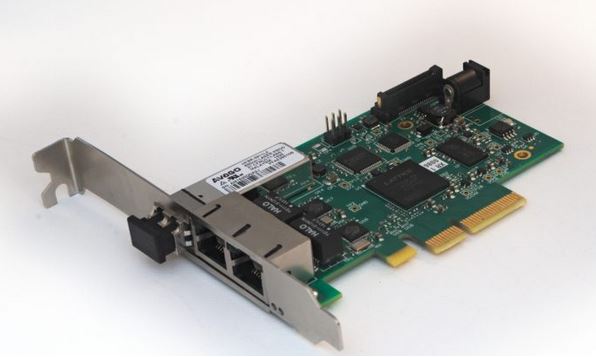

  • SlnGrab

    Board

    SlnGrab

    SInGrab is a development board perfect for prototyping/testing and also for evaluating ECP5 connectivity features (PCI Express, Gigabit Ethernet, DDR3, SERDES).
    ECP5 / ECP5-5G
    Breakout, Ethernet, SERDES, PWM, DDR SDRAM, GPIO Control, PCIe, Image Processing, Video Tx/Rx, FPD-Link II
    SlnGrab
