  • EtherCAT with Single-Axis Motor Control Reference Design

    Reference Design

    EtherCAT with Single-Axis Motor Control Reference Design

    Ethernet for Control Automation Technology (EtherCAT) with Motor Control reference design comprises a complete RISC-V embedded system integrated with the Beckhoff EtherCAT SubDevice IP and the Lattice FOC Motor Control IP.
    CertusPro-NX
    EtherCAT, Motor Control, ESC, FOC
    EtherCAT with Single-Axis Motor Control Reference Design
  • LIN - LIN Bus Master/Slave Controller

    IP Core

    LIN - LIN Bus Master/Slave Controller

    Production-proven core suitable for LIN 2.2 or earlier networks. Standard and Safety Enhanced (ISO 26262) versions. Portable to any Lattice FPGA.
    MachXO2, MachXO3, iCE40 Ultra / UltraLite, iCE40 UltraPlus, LatticeECP3, ECP5 / ECP5-5G, Certus-NX, CrossLink-NX
    LIN, Motor Control, Automotive, Functional Safety
    LIN - LIN Bus Master/Slave Controller

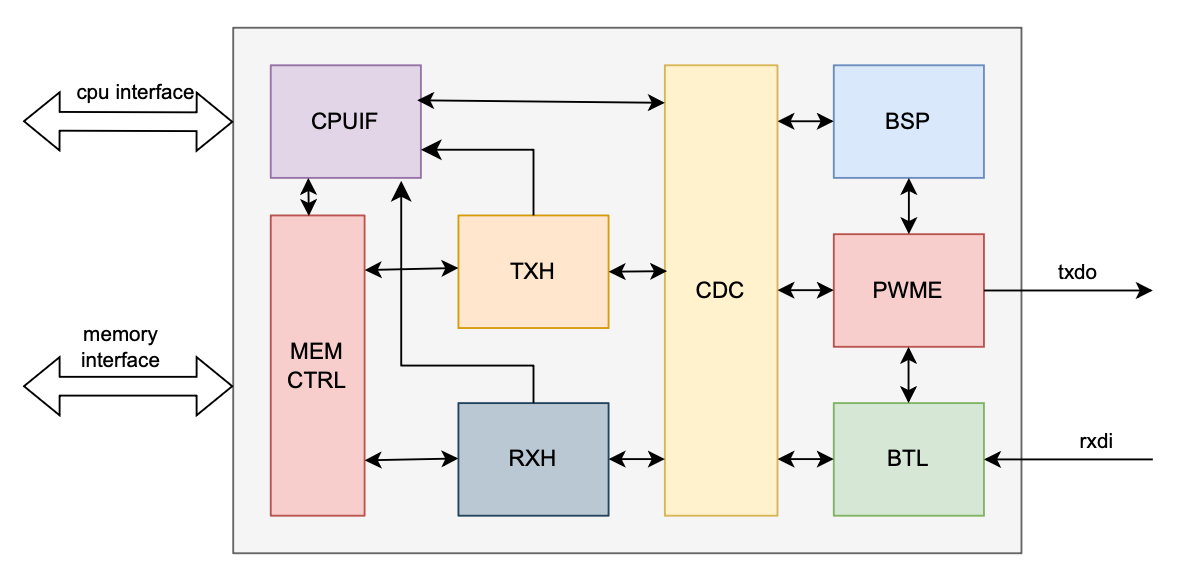

  • CAN XL - DCAN XL Controller

    IP Core

    CAN XL - DCAN XL Controller

    An advanced solution designed in accordance with ISO 11898‐1:2024 and CiA610-1 specifications, available in two versions, Basic and Safety-Enhanced.
    CertusPro-NX, Certus-NX, ECP5 / ECP5-5G, LatticeECP3, CrossLink-NX
    CAN, Motor Control, PWM, Data Communication, AHB-Lite, APB, AXI, Functional Safety
    CAN XL - DCAN XL Controller
