Board

Space Development Board by Adiuvo

Developed by a team of experienced engineers for space and with prototyping space applications in mind, the board provides access to the commercial equivalent of the space grade Certus™-NX-RT, making it ideal for prototyping and test campaigns to increase the Technology Readiness Level.

Certus-NX

Community Sourced, Raspberry Pi, SpaceWire, Defense

Board

LimeSDR Mini Development Board by Lime Microsystems

LimeSDR Mini Dev Board is a low cost, open source and apps-enabled SDR platform that can be used to support any type of wireless communication standard.

ECP5 / ECP5-5G

Community Sourced, RF Transceiver, FTDI, GPIO, JTAG, Defense, SDR

Board

SDI to MIPI CSI-2 Bridge by Antmicro

This device using Lattice CrossLink LIF-MD6000-6KMG80I that enables connecting industrial and filmmaking cameras and video accessories to edge AI platforms which often include the MIPI CSI-2 interface.

CrossLink

Community Sourced, MIPI, I2C, SPI, SDI Video

Board

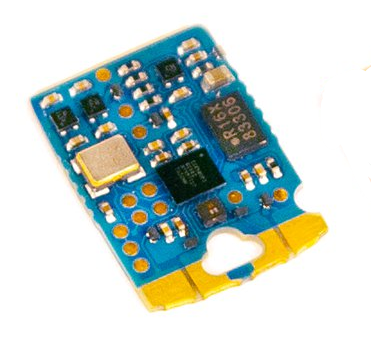

Fomu by Sutajio Kosagi

A tiny iCE40UP5K FPGA board that fits inside a USB port. It has four buttons, an RGB LED and comes in a plastic enclosure

iCE40 UltraPlus

Community Sourced, USB Form Factor

Board

iCEBreaker FPGA by 1BitSquared

Expandable iCE40 UltraPlus platform designed for open-source FPGA development tools, includes multiple PMOD connectors and more.

iCE40 UltraPlus

Community Sourced, Breakout, PMOD

Board

Alhambra II board by Alhambra

Community-sourced board for iCE40HX1K by Alhambra Bits. Designed for expansion to a complete hardware ecosystem.

iCE40 LP/HX

Community Sourced, Breakout, Arduino

Board

Arctic Tern BMC Kit

Arctic Tern PCIe carrier is a ModBMC-compatible low profile card, designed to provide a powerful peripheral development platform and full BMC hardware solution.

ECP5 / ECP5-5G

RS-232, Ethernet, SERDES, NOR Flash, SPI Flash, GPIO Control, I2C, PCIe, HDMI, Community Sourced

Board

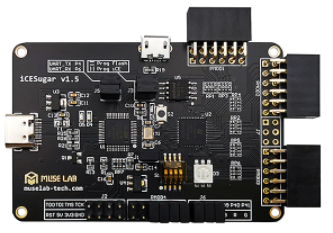

iCESugar by MuseLab

Designed by MuseLab, and available from multiple sources. Includes RGB LED, Type-C + Micro-USB, PMOD. Onboard ARM-based iCELink for debug and programming.

iCE40 UltraPlus

Community Sourced, LED Control, USB Type-C, PMOD

Board

OrangeCrab

This tiny ECP5 board follows the slim feather board specification. Includes DDR3 memory and compatible with open source toolchains. Great for RISC-V development.

ECP5 / ECP5-5G

Community Sourced, SD Memory, DDR SDRAM, Soft Processor

Board

TinyFPGA Bx

A tiny low-cost development board for the iCE40LP8K FPGA, supported by a full open-source tool chain.

iCE40 LP/HX

Community Sourced, Breakout

Board

ULX3S by Radiona.org

A fully open source, compact, robust, and affordable ECP5 FPGA dev board equipped with a balanced selection of additional components and expansions.

ECP5 / ECP5-5G

Community Sourced, Battery, Bluetooth-BLE, WiFi, ADC/DAC, SD Memory, SDRAM

Reference Design

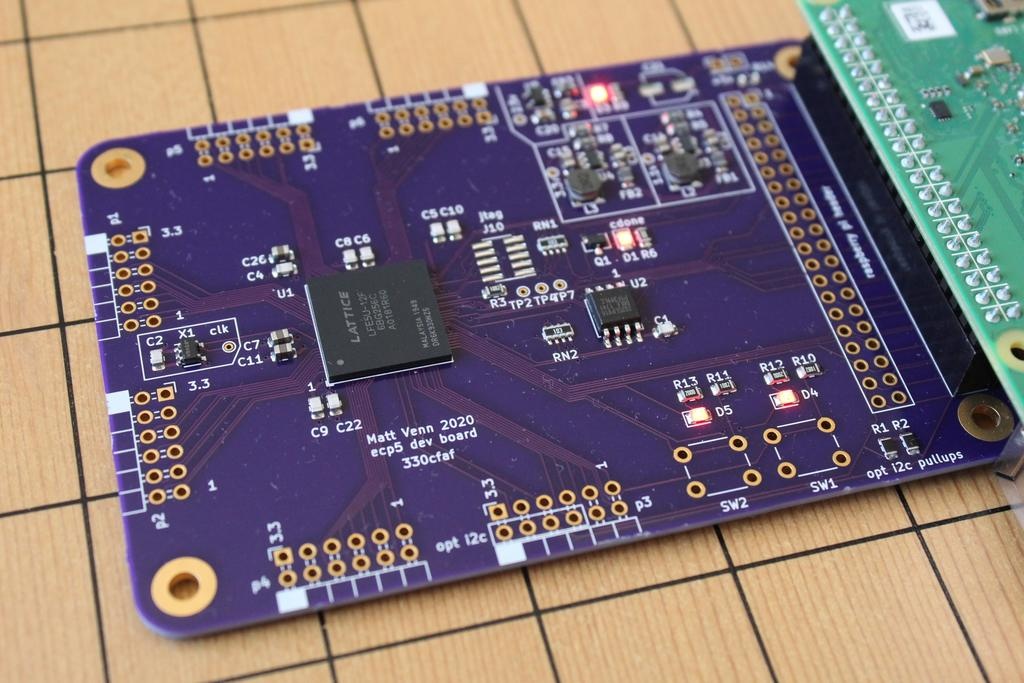

Basic ECP5 Dev Board by Matt Venn

This is a basic ECP5 evaluation board, with a Raspberry Pi - compatible header. Source files and test patterns are available at github.

ECP5 / ECP5-5G

Community Sourced, PMOD, Raspberry Pi, Breakout

Reference Design

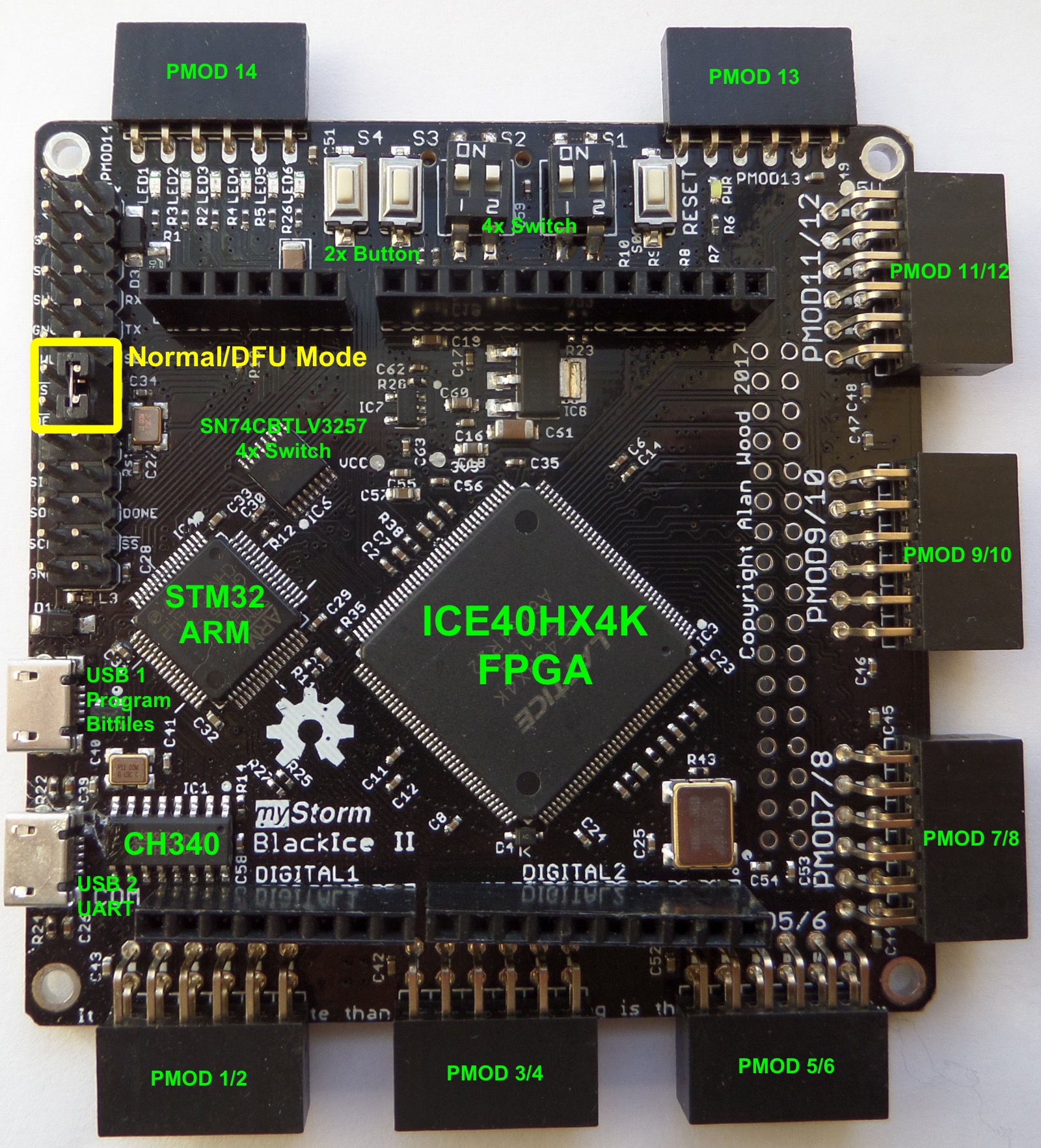

BlackIce-II by myStorm

This board has been prototyped, and is available as a Reference Design on GitHub and other open-source community forums. It has an on-board Arm Cortex M4 microcontroller and features PMOD, Arduino and RPi expansion headers.

iCE40 LP/HX

Community Sourced, Arduino, PMOD, Raspberry Pi, SD Memory, Microcontroller

Reference Design

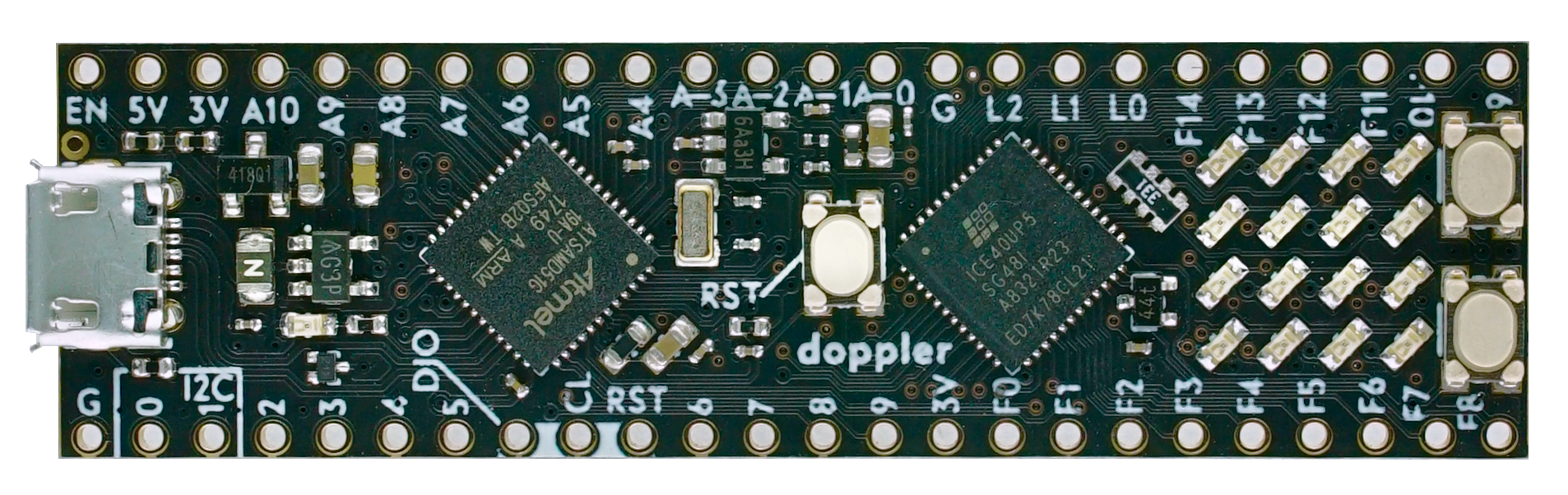

Doppler by Dadamachines

The doppler is a Cortex M4F Microcontroller + FPGA development board. Open source design files and documentation are available on github.

iCE40 UltraPlus

Community Sourced, Arduino, Microcontroller

Reference Design

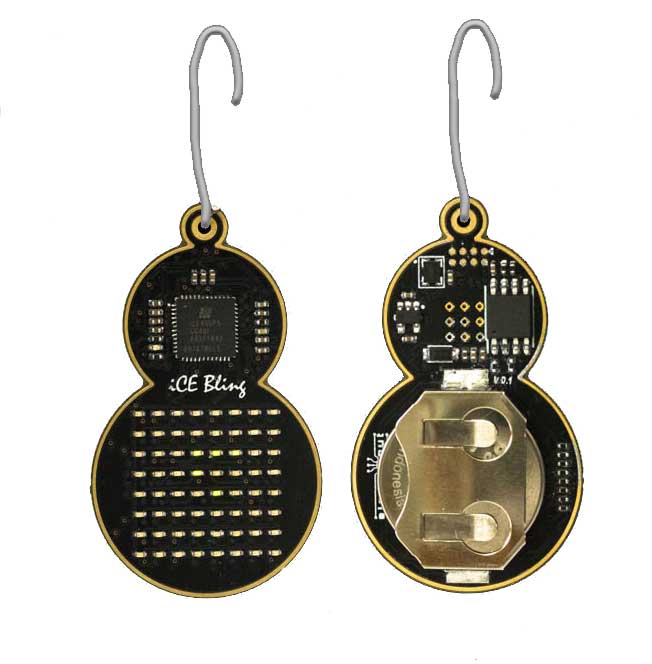

iCE Bling by Electronut Labs

Looking for a little fun and style? Electronut Labs has designed a pair of LED earings controlled with an iCE40UP5K FPGA. Design files are available on github.

iCE40 UltraPlus

Community Sourced, LED Control

Reference Design

Pergola by kbeckmann

This board has been prototyped, and available as a reference design at GitHub. It is a low-cost, open-source FPGA board featuring the Lattice ECP5 FPGA.

ECP5 / ECP5-5G

Community Sourced, PMOD

Reference Design

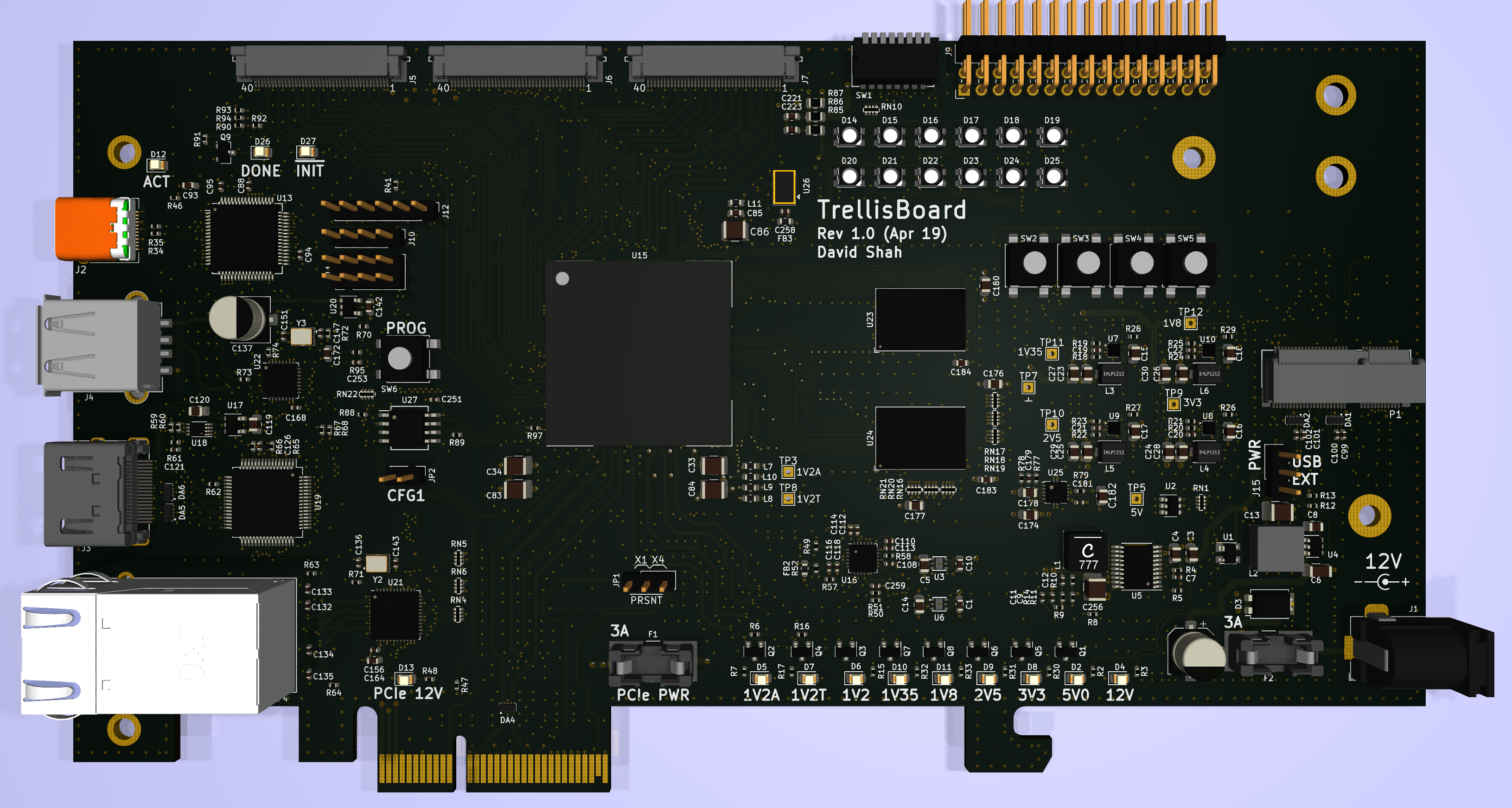

TrellisBoard by Dave Shah

An ECP5-based PCIe form-factor card. The board is prototyped, and available as a Reference Design on GitHub. Visit the link for more information and status.

ECP5 / ECP5-5G

Community Sourced, PMOD, SD Memory, Ethernet, HDMI, SERDES, PCIe, DDR SDRAM
