I/O Interface IP Core

Enables Access to External Modules via Standard Interfaces

Related Products

Related Applications

The I/O Interface IP provides a set of I/O functions that enable access to external modules through standard interfaces such as Advanced High-performance Bus Lite (AHB-Lite) and Advanced extensible Interface Lite (AXI4-Lite). This IP supports up to 256 bits of general-purpose input and output ports.

Resource Utilization details are available in the IP Core User Guide.

Features
  • Supports either AHB-Lite or AXI4-Lite interface to I/O Bus Interface
  • Supports 8, 16, or 32-bit data access for the AHB-Lite interface. For the AXI4-Lite interface, the data access is fixed at 32 bits
  • Supports up to 256 bits of general purpose input and output ports that can be programmed and sampled

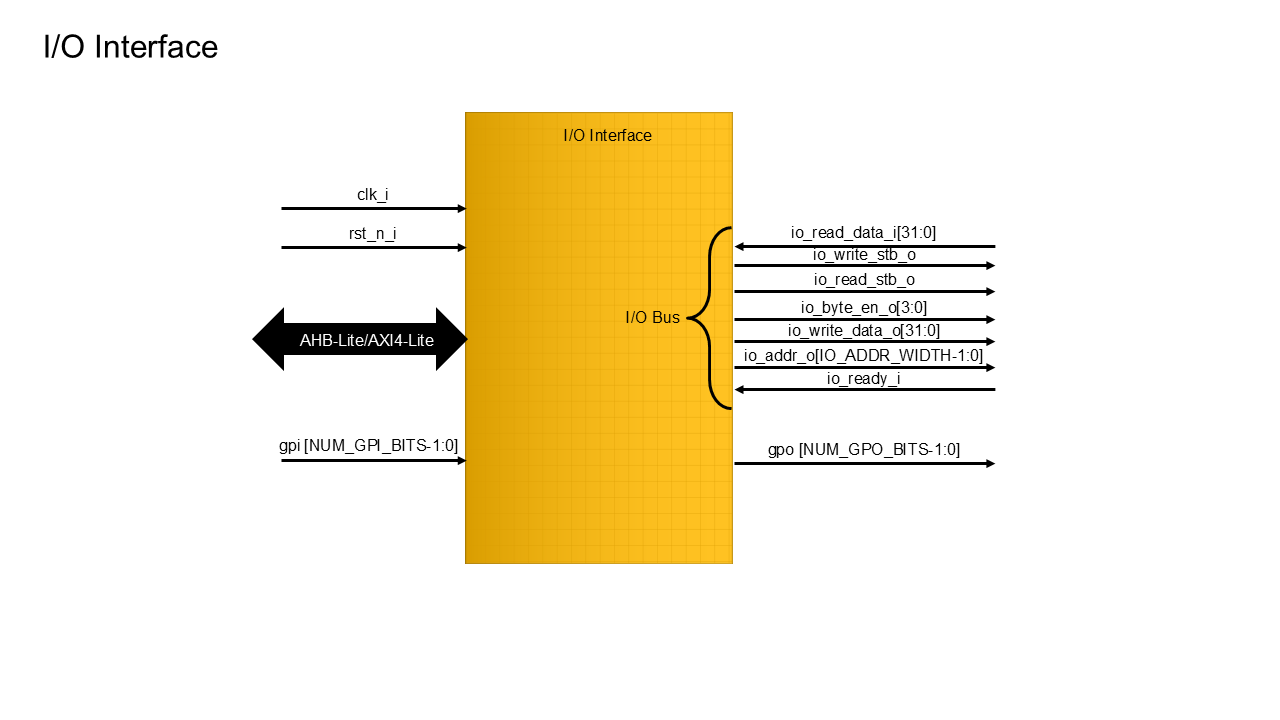

Block Diagram

IO InterfaceExpand Image

Ordering Information

The I/O Interface IP is provided at no additional cost with the Lattice Radiant software

Documentation

Quick Reference
Information Resources
TITLE NUMBER VERSION DATE FORMAT SIZE
Select All
I/O Interface IP Core - User Guide
FPGA-IPUG-02292 1.1 12/11/2025 PDF 1.2 MB
TITLE NUMBER VERSION DATE FORMAT SIZE
Select All
I/O Interface IP Core - Release Notes
FPGA-RN-02084 1.1 12/11/2025 PDF 237.9 KB
