莱迪思解决方案

IP Core

定时器/计数器IP

莱迪思半导体定时器/计数器IP用于跟踪系统中的超时，并在检测到超时时向CPU生成中断。

Certus-NX, CrossLink-NX, Avant-E, Avant-G, Avant-X, CertusPro-NX, CrossLink, CrossLinkPlus, ECP5 / ECP5-5G, iCE40 LP/HX, iCE40 Ultra/UltraLite, iCE40 UltraPlus, LatticeECP2/M, LatticeECP3, LatticeSC/M, LatticeXP2, Mach-NX, MachXO, MachXO2 , MachXO3, MachXO3D, MachXO5-NX, Certus-N2

AMBA, Lattice Propel, Lattice Diamond, Lattice Radiant, APB, AHB-Lite, Lattice Sentry, Lattice Sentry PFR IP Package, Security

IP Core

三倍速以太网MAC

在主机处理器和以太网之间发送和接收数据。符合IEEE 802.3标准。支持10/100/1000 Mbps传输速率。

ECP5 / ECP5-5G, LatticeECP3, LatticeECP2/M, LatticeXP2, LatticeSC/M, CrossLink-NX, Certus-NX, CertusPro-NX, MachXO5-NX, Avant-E, Avant-G, Avant-X, Certus-N2

Data Communication, Ethernet, Defense, Automotive, APB, AXI, AXI-Lite Interface, AHB, Ethernet Bundle

IP Core

色彩空间转换器

免费IP核——支持颜色空间转换和相关的CODEC功能（数据宽度为8-16位、精度高达18位）。支持RGB、YCbCr、CMYK及更多格式之间的转换。

ECP5 / ECP5-5G, LatticeECP3, LatticeECP2/M, LatticeSC/M, LatticeXP2, CrossLink-NX, Certus-NX, CertusPro-NX, Avant-E, MachXO5-NX, Avant-G, Avant-X, Certus-N2

Image Processing, JPEG CODEC, Lattice mVision, UAVs, Automotive

IP Core

CORDIC（坐标旋转数字计算机）

The Lattice CORDIC IP uses full internal precision while allowing variable output precision with several choices for rounding.

ECP5 / ECP5-5G, LatticeECP3, LatticeECP2/M, LatticeSC/M, LatticeXP2, Certus-NX, CertusPro-NX, MachXO5-NX, CrossLink-NX, Avant-E, Avant-G, Avant-X, Certus-N2

DSP, Automotive, DSP Bundle

IP Core

通用公共无线接口 - CPRI IP核

Implements the physical layer of the CPRI specification (basic function) and link delay accuracy (low latency character).

LatticeECP3, LatticeSC/M, LatticeECP2/M, ECP5 / ECP5-5G

CPRI, Data Communication

IP Core

数控振荡器

Also called a Direct Digital Synthesizer (DDS). Supports multiple channels and a Quadrature Amplitude Modulation (QAM) mode, plus other usual configurations

LatticeECP3, LatticeECP2/M, LatticeSC/M, LatticeXP2

DSP

IP Core

64 位 PCI 目标

Fully compliant with the PCI SIG 3.0 for speeds up to 66MHz. Customizable for 32/64-bit.

LatticeSC/M, LatticeECP2/M, LatticeXP2, LatticeECP3

Bus Controllers, PCI

IP Core

64位PCI主控/目标

Fully compliant with the PCI SIG 3.0 for speeds up to 66MHz. Customizable for 32/64-bit master/target or target solution

LatticeSC/M, LatticeECP2/M, LatticeXP2, LatticeECP3

Bus Controllers, PCI

IP Core

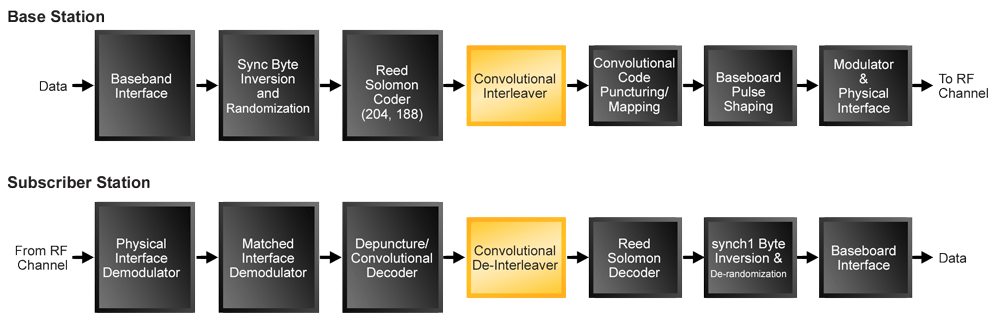

交织器/解交织

Supports rectangular block type and convolutional architectures. Rectangular interleaving arranges the input data row-wise in a matrix

LatticeECP3, LatticeECP2/M, LatticeXP2, LatticeSC/M

DSP

IP Core

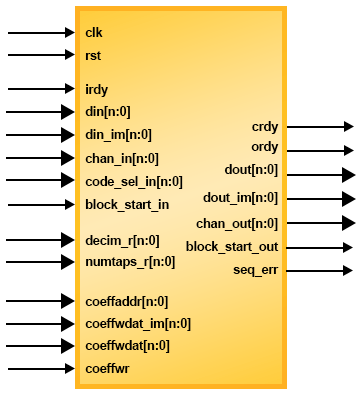

相关器IP核

Correlates an incoming data stream to a stored binary pattern called a code / coefficient sequence. Configure to 8 bit width, 256 channels, 2048 taps and more.

LatticeECP2/M, LatticeSC/M, LatticeXP2

Data Communication, DSP

IP Core

SPI4.2

Enables user instantiation of OIF-compliant System Packet Interface Level 4 Phase 2 Revision 1 (SPI4.2.1) cores

LatticeECP3, LatticeSC/M

SPI, SPI-4, Defense

IP Core

级联积分梳状（CIC）滤波器

Widely parameterizable CIC filter that supports multiple channels with run-time programmable rates and differential delay parameters (aka Hogenauer Filter).

LatticeECP2/M, LatticeSC/M, LatticeXP2, LatticeECP3

Data Communication, DSP

IP Core

TC1000-WiMAX: 802.16 d/e CTC

Convolutional Turbo Code (CTC) decoder optimized for IEEE 802.16 d/e applications

LatticeECP3, LatticeSC/M, LatticeECP2/M

Data CODEC, Data Communication, WiMAX

IP Core

TC1700: 用于HSPA+，LTE和WiMAX的Turbo译码器核

Turbo decoder supporting three PHY layer specifications - 3GPP-HSPA, 3GPP-LTE, WiMAX IEEE802.16e

LatticeECP3, LatticeSC/M, LatticeECP2/M

Data CODEC, Data Communication, WiMAX

IP Core

TC4400: ITU-Ghn LDPC 编码器/解码器核

LDPC decoder Core fully compliant with ITU-Ghn (wireline home networking) specifications

LatticeECP3, LatticeECP2/M, LatticeSC/M

Data CODEC, Data Communication

IP Core

TC7000-LTE: 3GPP-Long Term 演进CTC解码器

Convolutional turbo code (CTC) decoder optimized for 3GPP/LTE specifications

LatticeECP3, LatticeECP2/M, LatticeSC/M

Data CODEC, Data Communication

IP Core

DP8051：高性能指令流水线8位微控制器

DP8051 soft core is 100% binary compatible with the industry standard 8051 8-bit microcontroller.

LatticeXP2, LatticeSC/M, LatticeECP2/M

Soft Processor

IP Core

EP501: NAND 闪存控制器

Easy interface for user to access NAND Flash devices

LatticeSC/M, LatticeXP2

NAND Flash

IP Core

EP510: CompactFlash/PCMCIA 主机适配器

Supports all four access types as defined in the PC Card/PCM-CIA/ CompactFlash standards

LatticeXP2, LatticeSC/M

CompactFlash

IP Core

EP550: SD / SDIO / MMC 主控制器

Host controller for SD memory card, SDIO and MMC interface

LatticeXP2, LatticeSC/M

AHB, SD Memory
