TICO-RAW Encoder/Decoder IP-cores

TICO-RAW is a revolutionary RAW compression, extremely tiny & low power, with low latency and lossless quality to handle camera and sensor data (Bayer).

CrossLink-NX, Certus-NX, CertusPro-NX, LatticeECP2/M, ECP5 / ECP5-5G

Data CODEC, Data Compression, Camera, Debayer, Image Processing, JPEG CODEC, SMPTE/Broadcast Video, Video Tx/Rx, Video Compression, RAW Codec

IP Core

Turbo Decoder

Flexible and compliant with 3GPP and CCSDS

LatticeECP2/M, LatticeXP2, LatticeECP3

Data CODEC, Data Communication

IP Core

Turbo Encoder

Flexible and compliant with 3GPP, 3GPP2 and CCSDS

LatticeECP2/M, LatticeXP2, LatticeECP3

Data CODEC, Data Communication

IP Core

Block Convolutional Encoder

Parameterizable core for convolutional encoding of continuous or burst input data streams

LatticeXP2, LatticeECP2/M, LatticeECP3

Data CODEC, Data Communication, DSP

IP Core

Block Viterbi Decoder

Archived IP Core supporting LatticeECP2/M, LatticeXP2 and LatticeECP3 FPGAs - For reference only

LatticeECP2/M, LatticeXP2, LatticeECP3

Data CODEC, Data Communication, DSP

Reference Design

8b/10b Encoder/Decoder

8b to 10b encoder and 10b to 8b decoder

MachXO, LatticeECP3, LatticeXP2, ispMACH 4000V/B/C/Z

Data CODEC, Data Communication

IP Core

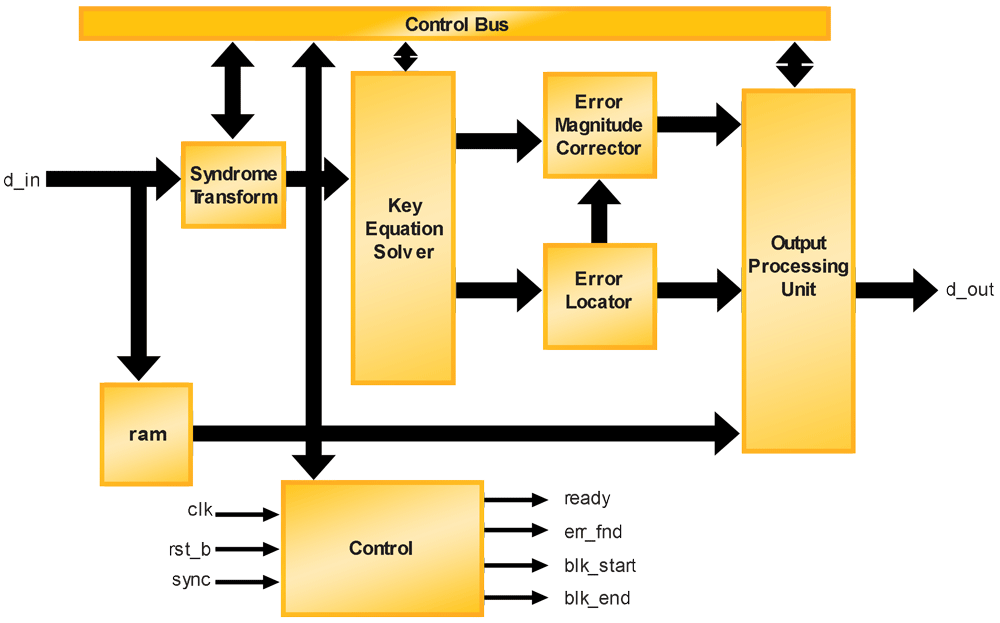

Dynamic Block Reed-Solomon Decoder

Highly configurable, and compliant with several industry standards including IEEE 802.16-2004

LatticeECP3, LatticeECP2/M, LatticeXP2

Data CODEC, Data Communication, SMPTE/Broadcast Video

IP Core

Dynamic Block Reed-Solomon Encoder

Used to perform Forward Error Correction (FEC) in data communications and digital video broadcasting. Highly configurable.

LatticeECP3, LatticeECP2/M, LatticeXP2

Data CODEC, Data Communication, SMPTE/Broadcast Video

Reference Design

ECC Module Reference Design

Provides Single Error Correction - Double Error Detection (SECDED) capability based on a class of optimal minimum oddweight error parity codes

LatticeECP3

Data CODEC, Data Communication, Guidance Systems, Space

IP Core

Common Scrambling Algorithm Cores

Implement the ETSI specified Common Scrambling Algorithm (CSA) which is used to provide the conditional access mechanism for MPEG-2 video streams

LatticeECP3

Data CODEC, Encryption, H.264 (MPEG), SMPTE/Broadcast Video

IP Core

Fast AES Core

Implements AES (Rijndael) to latest NIST FIPS PUB 197. Full dynamic support for all AES key sizes (128, 192 and 256-bits)

LatticeECP3

AES, Data CODEC, Encryption, NIST, Security

IP Core

Fast Hash Core

Implements the NIST approved SHA-1, SHA-224, SHA-256, SHA-384 and SHA-512 secure hash algorithms to FIPS 180-3 and the legacy MD5 hash algorithm to RFC 1321

LatticeECP3

Data CODEC, Data Communication, Encryption, Security, SHA

IP Core

LZRW3 Data Compression Core

Implements the LZRW3 data compression algorithm in FPGA without the need for external memory storage. Capable of over 1 Gigabit/sec.

LatticeECP3

Data CODEC, Data Communication, Data Compression

IP Core

TC1000-WiMAX: 802.16 d/e CTC

Convolutional Turbo Code (CTC) decoder optimized for IEEE 802.16 d/e applications

LatticeECP3, LatticeSC/M, LatticeECP2/M

Data CODEC, Data Communication, WiMAX

IP Core

TC1700: Turbo decoder Core for HSPA+, LTE & WiMAX

Turbo decoder supporting three PHY layer specifications - 3GPP-HSPA, 3GPP-LTE, WiMAX IEEE802.16e

LatticeECP3, LatticeSC/M, LatticeECP2/M

Data CODEC, Data Communication, WiMAX

IP Core

TC4400: ITU-Ghn LDPC Encoder/Decoder Cores

LDPC decoder Core fully compliant with ITU-Ghn (wireline home networking) specifications

LatticeECP3, LatticeECP2/M, LatticeSC/M

Data CODEC, Data Communication

IP Core

TC7000-LTE: 3GPP-Long Term Evolution CTC Decoder

Convolutional turbo code (CTC) decoder optimized for 3GPP/LTE specifications

LatticeECP3, LatticeECP2/M, LatticeSC/M

Data CODEC, Data Communication

IP Core

GRSPW_CODEC SpaceWire Codec IP Core

The GRSPW_CODEC core implements a SpaceWire encoder decoder with a 9-bit wide FIFO host interface in each direction. The core complies to the SpaceWire standard (ECSS-E-ST-12C). Data is transmitted and received through FIFOs with configurable depth.

CertusPro-NX, CrossLink-NX

Data CODEC, AHB, AMBA, Space

Reference Design

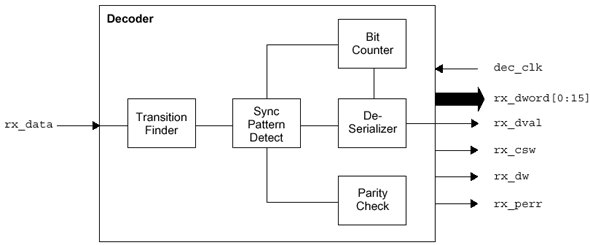

1553 Encoder/Decoder

Implements Manchester II encoding and decoding required by the 1553 along with synchronization pattern insertion and identification.



Data CODEC, Data Communication

IP Core

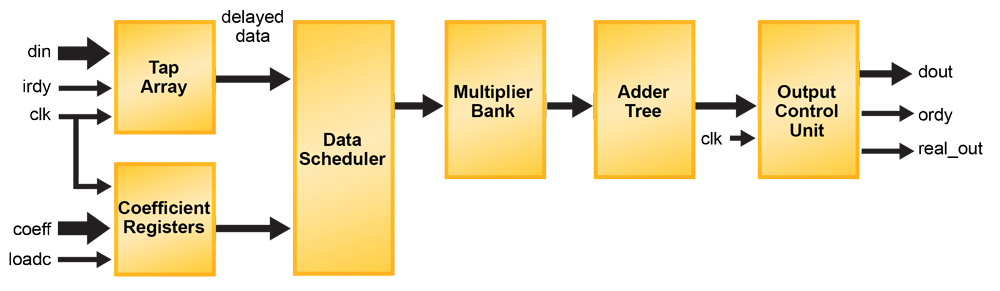

Parallel FIR Filter

Archived IP Core supporting ORCA FPGAs - For reference only.



Data CODEC, Data Communication, RF Design
