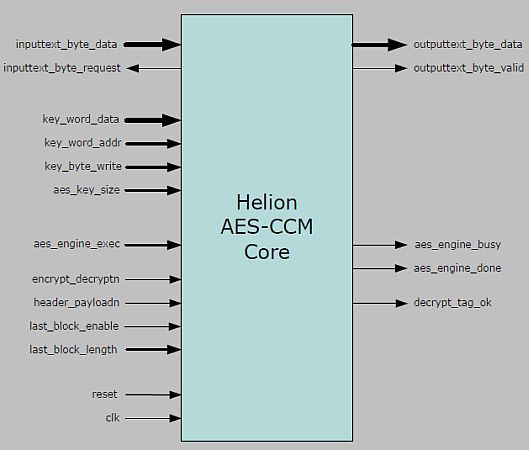

  • AES-CCM Core

    IP Core

    AES-CCM Core

    Implements Counter with CBC-MAC (CCM) authenticated encryption mode to NIST 800-38C
    LatticeECP3
    Encryption, NIST, Security
    AES-CCM Core

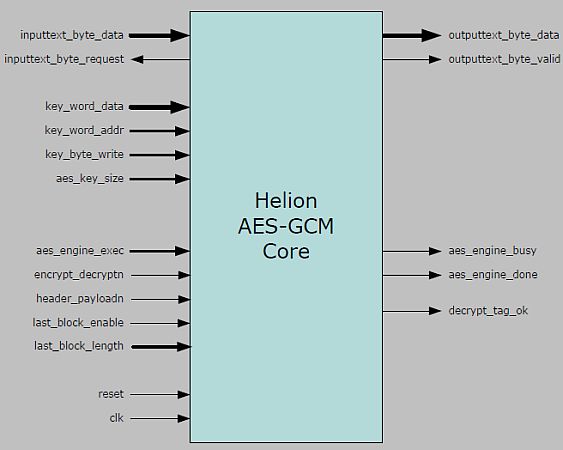

  • AES-GCM Core

    IP Core

    AES-GCM Core

    Implements Galois/Counter (GCM) authenticated encryption mode to NIST 800-38D
    LatticeECP3
    Encryption, NIST, Security
    AES-GCM Core
  • Common Scrambling Algorithm Cores

    IP Core

    Common Scrambling Algorithm Cores

    Implement the ETSI specified Common Scrambling Algorithm (CSA) which is used to provide the conditional access mechanism for MPEG-2 video streams
    LatticeECP3
    Data CODEC, Encryption, H.264 (MPEG), SMPTE/Broadcast Video
    Common Scrambling Algorithm Cores
  • Fast AES Core

    IP Core

    Fast AES Core

    Implements AES (Rijndael) to latest NIST FIPS PUB 197. Full dynamic support for all AES key sizes (128, 192 and 256-bits)
    LatticeECP3
    AES, Data CODEC, Encryption, NIST, Security
    Fast AES Core
  • Fast Hash Core

    IP Core

    Fast Hash Core

    Implements the NIST approved SHA-1, SHA-224, SHA-256, SHA-384 and SHA-512 secure hash algorithms to FIPS 180-3 and the legacy MD5 hash algorithm to RFC 1321
    LatticeECP3
    Data CODEC, Data Communication, Encryption, Security, SHA
    Fast Hash Core

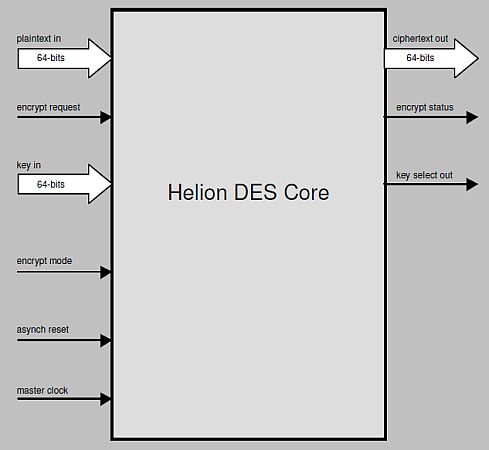

  • High Performance DES and Triple-DES Cores

    IP Core

    High Performance DES and Triple-DES Cores

    Implement the DES and triple-DES encryption standards, as described in NIST Federal Information Processing Standard (FIPS) publication 46-3
    LatticeECP3
    Encryption, NIST, Security
    High Performance DES and Triple-DES Cores
  • LZRW3 Data Compression Core

    IP Core

    LZRW3 Data Compression Core

    Implements the LZRW3 data compression algorithm in FPGA without the need for external memory storage. Capable of over 1 Gigabit/sec.
    LatticeECP3
    Data CODEC, Data Communication, Data Compression
    LZRW3 Data Compression Core
  • Modular Exponentiation Core

    IP Core

    Modular Exponentiation Core

    Performs the Z = YE mod M computation for Public-Key encryption schemes such as RSA, Diffie-Hellman and the Digital Signature Algorithm (DSA - FIPS 186-2)
    LatticeECP3
    DSA, Encryption, Public/Private Key
    Modular Exponentiation Core
  • Payload Compression System

    IP Core

    Payload Compression System

    Uses a very robust and mature implementation of the LZRW lossless compression algorithm
    LatticeECP3
    Data Compression
    Payload Compression System
  • Standard AES Core

    IP Core

    Standard AES Core

    A mid-rate solution, aimed at applications which require a few hundred Mbps throughput, whilst offering a really efficient area footprint (NIST FIPS PUB 197)
    LatticeECP3
    AES, NIST
    Standard AES Core
  • Tiny AES Core

    IP Core

    Tiny AES Core

    Implements AES (Rijndael) to latest NIST FIPS PUB 197 using the minimum FPGA resources.
    LatticeECP3
    AES
    Tiny AES Core
  • Tiny Hash Core

    IP Core

    Tiny Hash Core

    Supports one or more of the NIST approved cryptographic hashing algorithms described in FIPS 180-3, plus the legacy MD5 algorithm described in RFC 1321
    LatticeECP3
    Encryption, NIST, SHA
    Tiny Hash Core
