一个全新智能、互联的机器世界正推动着工业4.0智能工厂的发展，这将彻底改变产品的生产、测试和运输方式。智能工厂通过采用机器视觉算法和智能优化自动化流程，提升产品质量和产量。

  • 质量保证——包裹/零部件检验/瑕疵检测
  • 测量/计量
  • 指导、零件追踪和识别
  • 光学字符识别和验证（OCR/OCV）
  • 条形码/二维码读取器和模式识别
  • 视觉机器人
Machine Vision

莱迪思FPGA专为机器视觉优化，拥有以下优势：

  • 比同类FPGA功耗最多低75%
  • 小尺寸——4 mm x 4 mm起
  • 优化的传感器I/F——2.5 Gbps硬核 MIPI D-Phy/通道，1.5 Gbps I/O用于SLVS-EC和LVDS接口
  • 5Gbps PCI-e用于帧抓取器和视频处理系统
  • 高性能、低延迟
  • LatticemVision和LatticesensAI解决方案集合

莱迪思mVision和LatticesensAI解决方案集合提供现成灵活的IP构建模块、参考设计和平台，进一步加速产品开发。

    跳转到

    框图

    Embedded Vision Camera

    应用案例

    IP网络摄像头放大图片

    IP网络摄像头

    • 传感器接口——MIPI、LVDS
    • 可定制的ISP用于图像处理
    • 基于莱迪思sensAI的人工智能目标/瑕疵检测
    • JPEG-XS压缩实现Gigabit IP网络的无损低延迟数据流传输

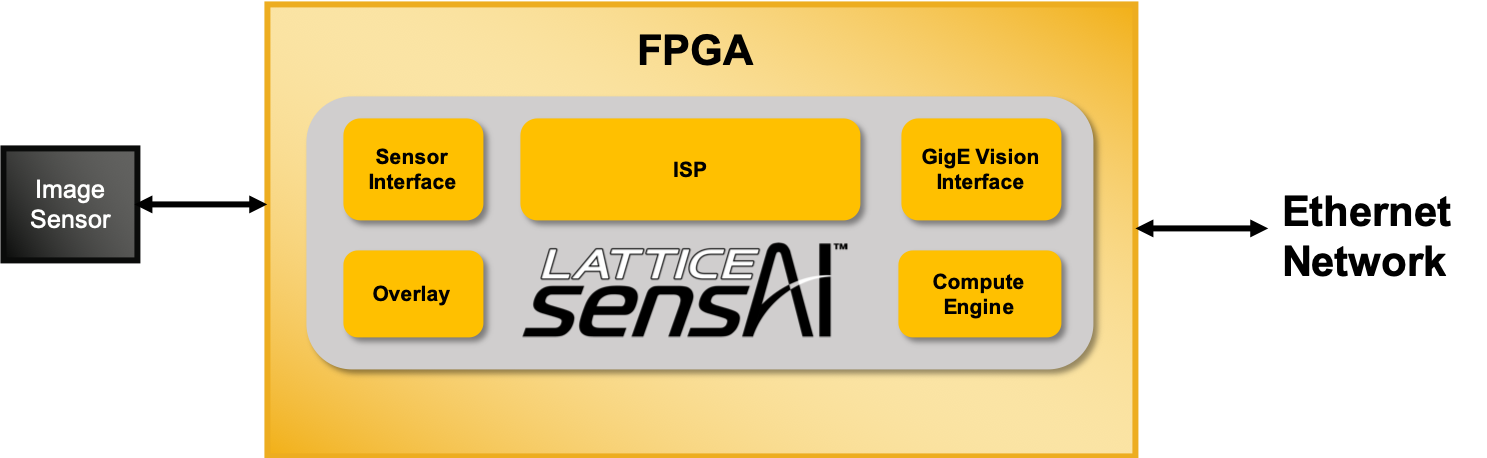

    机器视觉摄像头处理放大图片

    机器视觉摄像头处理

    • 传感器接口、硬核MIPI、SLVS EC、LVDS
    • 定制化ISP用于图像处理
    • Lattice sensAI人工智能检测物体/瑕疵
    • 接口——GigE Vision、USB3 Vision、CoaxPress
    机器视觉帧抓取器视频预/协处理放大图片

    机器视觉帧抓取器视频预/协处理

    • GigE Vision、USB 3 Vision或CoaxPress I/F连接到PC
    • FPGA的视频预处理/协处理
    • Lattice sensAI人工智能检测物体/瑕疵
    • 硬核5 Gbps PCI-e Gen 2连接主机

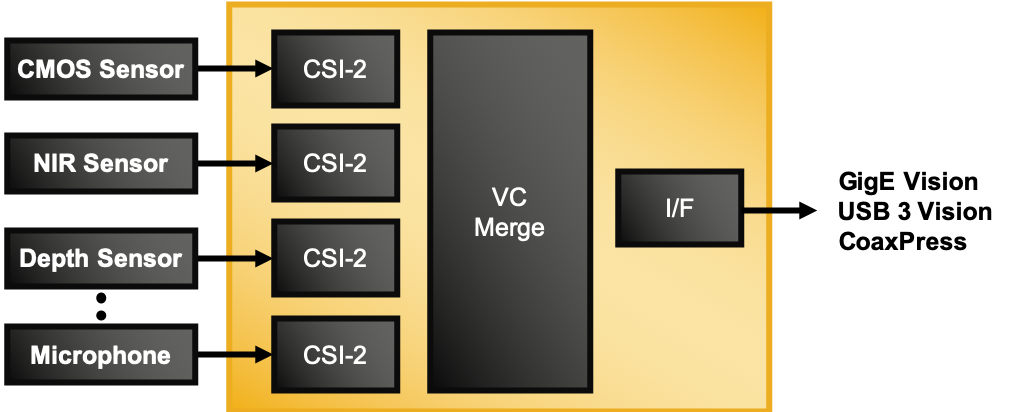

    多传感器机器视觉摄像头放大图片

    多传感器机器视觉摄像头

    • 双传感器多/高光谱摄像头
    • 环境传感器
    • 图像融合/处理
    • 3D/ToF处理
    • 音频处理
    • 接口——GigE Vision、USB3 Vision、CoaxPress

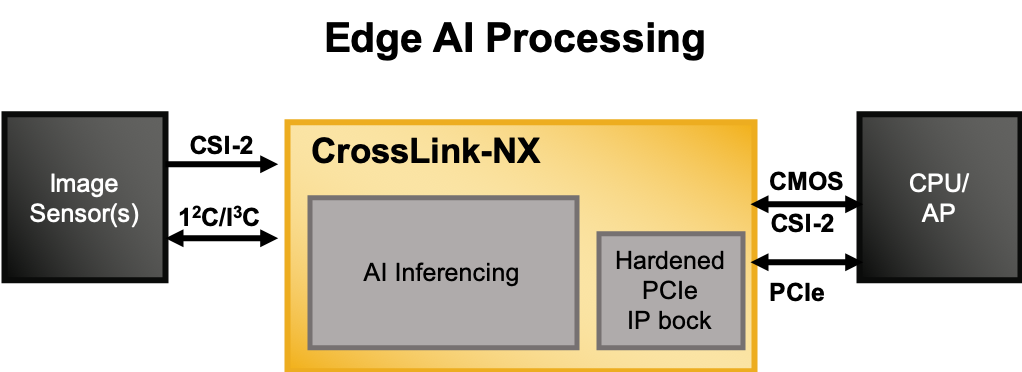

    网络边缘AI处理放大图片

    网络边缘AI处理

    • 将一个或多个CSI-2图像传感器桥接到处理器接口
    • 高达3 Mb的内部RAM用于处理
    • 为 CPU分担推理功能，实现对象检测/计数
    • 将视频桥接和边缘AI集成到单个器件中

    参考设计

    MIPI CSI-2 to PCIe Reference Design

    Reference Design

    MIPI CSI-2 to PCIe Reference Design

    CertusPro™‑NX MIPI CSI‑2 to PCIe reference design streams camera video to a PC via DMA on the Versa Board, with Linux drivers and capture‑to‑display demo.
    CertusPro-NX
    CSI, FPGA, MIPI, OS, PCIe, Video Tx/Rx, AR / VR & Drones, Home Control Appliances & Security, IoT & Wearables, Notebooks & PCs, Printers, Smart Toys & Robots, Tablets, Automotive, Lattice mVision, Lattice Automate, Nexus PCIe
    MIPI CSI-2 to PCIe Reference Design
    MIPI CSI-2 to HDMI Reference Design Block Diagram

    Reference Design

    MIPI CSI-2转HDMI参考设计

    MIPI CSI-2转HDMI参考设计包括了仿真设计所需的可综合的MIPI-HDMI内核设计和激励发生器、检查器和测试平台。
    Avant-E
    Lattice mVision, MIPI, HDMI, CSI-2, I2C
    MIPI CSI-2转HDMI参考设计
    Multi-Object Detection Reference Design - Block Diagram

    Reference Design

    POS PHY Level 3链路

    Enables real-time detection, classification, and tracking of multiple objects in images and video streams at the edge.
    CertusPro-NX
    D-PHY, OSPI, PCIe, USB, SPI, I2C, AXI, APB, Lattice sensAI
    POS PHY Level 3链路
    Defect-Detection-RefDesign-BD

    Reference Design

    POS PHY Level 3链路

    Enables real-time identification and classification of defects in manufacturing, assembly, and inspection processes at the edge.
    CertusPro-NX
    D-PHY, OSPI, PCIe, USB, SPI, I2C, AXI, APB, Lattice sensAI
    POS PHY Level 3链路
    Machine Vision Barcode Detection Block Diagram

    Reference Design

    条码检测参考设计

    该演示使用了CertusPro-NX语音和视觉机器学习板及其基于Yolov5 NN模型的摄像头条形码检测功能。
    CertusPro-NX
    Machine Learning/AI, Lattice sensAI, Barcode Detection
    条码检测参考设计
    Show More

    演示示例

    Lattice Image Signal Processing Block Diagram

    演示

    莱迪思图像信号处理演示

    为嵌入式视觉开发套件提供基于ECP5 FPGA的完整ISP示例设计，非常适合工业、医疗和汽车应用。
    ECP5, CertusPro-NX
    Image Signal Processing, Lattice mVision, Space, Defense, Satellite Communications, Launchers
    莱迪思图像信号处理演示
    Defect Detection Demo - BD

    演示

    Defect Detection Demonstration

    Enabling real-time detection and classification of defects in manufacturing, assembly, and inspection processes.
    CertusPro-NX
    PCIe, USB, SPI, I2C, AXI, APB, D-PHY, OSPI, Lattice sensAI
    Defect Detection Demonstration
    Human to Machine - Block Diagram

    演示

    Human to Machine Interfacing Demonstration

    Human-to-machine interface demo uses FPGA-accelerated NN models for detecting, positioning, and identifying persons.
    CrossLink-NX
    NN Models, Person Detection, UART, Lattice sensAI, sensAIEdgeVisionSDK
    Human to Machine Interfacing Demonstration

    Multi Object Detection Demonstration

    Enabling real-time detection, classification, and tracking of multiple objects in diverse environments.


    Machine Vision Barcode Detection Block Diagram

    演示

    条码检测演示

    该演示使用CertusPro-NX语音和视觉机器学习板实现条码检测算法。
    CertusPro-NX
    Machine Learning/AI, Lattice sensAI, Barcode Detection
    条码检测演示
    Show More

    IP核

    CSI-2-DSI-D-PHY-Receiver-03-31-2026

    IP Core

    MIPI CSI/DSI IP Core

    The MIPI® CSI/DSI IP is the unified and re-architected MIPI IP that provides a flexible solution for transmission and reception of high-speed video data over a Mobile Industry Processor Interface (MIPI)-compatible D-PHY interface in FPGA designs.
    CrossLink-NX, Certus-NX, CertusPro-NX, MachXO5-NX
    CSI-2, DSI, MIPI, Modular MIPI/D-PHY, Video Tx/Rx, Lattice mVision, AR / VR & Drones, Home Control Appliances & Security, IoT & Wearables, Notebooks & PCs, Smart Toys & Robots, Tablets, Automotive, MIPI Bundle, Lattice Drive
    MIPI CSI/DSI IP Core
    Lattice Image Signal Processing Reference Design Block Diagram

    IP Core

    Image Signal Processing IP Cores Suite

    The Lattice mVision ISP IP Core implements ISP pipelines for image quality enhancements in embedded designs based on Lattice FPGA devices.
    CrossLink-NX, Certus-NX, CertusPro-NX, Avant-E, Avant-G, Avant-X, Certus-N2
    AXI, AXI-Stream, AXI-Lite Interface, AWB, Camera, CCM, CFA Interpolation, Debayer, Image Processing, Image Signal Processing, Lattice mVision, RGB, Defense, Avionics
    Image Signal Processing IP Cores Suite
    Advanced CNN Accelerator IP Block Diagram

    IP Core

    高级CNN加速器IP

    计算神经网络的各个网络层，包括卷积层、池化层、批量归一化层和全连接层。
    CertusPro-NX, Avant-E, Avant-X
    Machine Learning/AI, Lattice sensAI, Object Detection, Object Identification, Home Control Appliances & Security, IoT & Wearables, CNN Bundle, Avionics
    高级CNN加速器IP
    CNN Plus Accelerator IP Block Diagram

    IP Core

    CNN Plus加速器IP

    CNN Plus IP是一款灵活的加速器IP，通过莱迪思FPGA的功能简化了超低功耗AI的实现。
    CrossLink-NX, Certus-NX, CertusPro-NX
    Machine Learning/AI, Lattice sensAI, AR / VR & Drones, Home Control Appliances & Security, IoT & Wearables, Notebooks & PCs, Printers, Smart Toys & Robots, Tablets, UAVs, Automotive, CNN Bundle
    CNN Plus加速器IP
    IONOS Image Signal processing IP Pipelines

    IP Core

    Helion IONOS图像信号处理IP系列

    来自Helion Vision的全面、高质量、可自行配置的ISP解决方案，包括了从基本到高级的高动态范围成像（HDRI）色彩流水线。
    MachXO, LatticeXP2, LatticeECP3, CrossLink, ECP5, CrossLink-NX
    HDR, Image Processing, Video Tx/Rx, Lattice mVision, Automotive, Avionics
    Helion IONOS图像信号处理IP系列
    Show More

    开发板

    CertusPro-NX Versa Board Side View

    Board

    CertusPro-NX Versa开发板

    CertusPro-NX Versa板支持多种行业标准，如MIPI、SFP+、10 GbE、LPDDR4和PCIe (Gen3)，可用于快速原型开发和测试。
    CertusPro-NX
    Lattice mVision, MIPI, LPDDR4, PCIe, Video Tx/Rx, IoT & Wearables, Smart Toys & Robots, Home Control Appliances & Security, Notebooks & PCs, Tablets, Printers, AR / VR & Drones, SFP, Lattice ORAN, Lattice Automate, GPIO Control, I2C, PMOD, SERDES, SMA, SPI, Automotive, Industrial Networking
    CertusPro-NX Versa开发板
    Combined Side View

    Board

    嵌入式视觉开发套件

    适用于网络边缘嵌入式视觉处理应用的模块化平台
    CrossLink, ECP5
    3D Video, Camera, DDR SDRAM, HDMI, Image Processing, Machine Learning/AI, Signal Aggregation, Video Tx/Rx, VIP, Lattice mVision, IoT & Wearables, Smart Toys & Robots, Home Control Appliances & Security, Notebooks & PCs, Tablets, Printers, AR / VR & Drones, UAVs
    嵌入式视觉开发套件
    CertusPro-NX PCIe Bridge Board Side View

    Board

    CertusPro-NX PCIe桥接板

    CertusPro-NX PCIe桥接板支持PCIe和嵌入式视觉类型应用的视频桥接功能。
    CertusPro-NX
    Lattice mVision, Lattice ORAN, PCIe, JTAG, SPI Flash, LPDDR4, PMOD, SERDES, X/S/RGMII, Industrial Networking, FMC
    CertusPro-NX PCIe桥接板
    CrossLink-NX Voice and Vision Machine Learning Board Side View

    Board

    CrossLink-NX声音和视觉机器学习板

    专为采用莱迪思sensAI和CrossLink-NX器件的低功耗机器学习应用而设计。包括图像传感器、麦克风、HyperRAM和扩展端口。
    CrossLink-NX
    CSI-2, CSI Camera, Camera, Microphone, PMOD, HyperRAM, Machine Learning/AI, Lattice sensAI
    CrossLink-NX声音和视觉机器学习板
    MG_5339_CPNXSoM_TopView

    Board

    CertusPro-NX System on Module (SoM) Board

    CertusPro-NX SOM Board is a comprehensive platform for rapid prototyping, proof-of-concept development, and demonstration of high-performance embedded and AI-driven applications.
    CertusPro-NX
    SOM, RPi, HyperRAM, MIPI, PCIe, Lattice sensAI
    CertusPro-NX System on Module (SoM) Board
    Show More
