CertusPro-NX System on Module (SoM) Board

A Complete FPGA Embedded Vision and AI Platform

Related Products

The CertusPro-NX System on Module (SoM) Board is a comprehensive platform for rapid prototyping, proof-of-concept development, and demonstration of high-performance embedded and AI-driven applications. The kit integrates the Lattice CertusPro-NX FPGA SoM, a versatile carrier board, and support for the Raspberry Pi Compute Module 5 (RPi CM5), enabling seamless system integration and flexible expansion for a wide range of edge AI and industrial automation use cases.

Features

  • Support Dual MIPI CSI-2 Camera Interfaces with two 4-lane MIPI channels provide high-bandwidth connectivity for image sensors or displays
  • Includes a 4-lane SerDes, with one lane dedicated to PCIe Gen2 x1 for seamless integration with Raspberry Pi CM5
  • Equipped with two 64Mb HyperRAM devices for high-speed external memory access
  • Onboard SPI flash enables FPGA configuration and additional storage capabilities
  • Offers Wide Range I/O (WRIO) and High Performance I/O (HPIO) for flexible peripheral expansion

Jump to

Kit Contents

  • CertusPro-NX SoM Board (LFCPNX-SOM-EVN)
  • Generic Carrier HW Board
  • Raspberry PI Compute Module 5
  • Raspberry PI Compute Module 5 Passive Cooler
  • IMX219 Camera with regular (narrow) FOV
  • 22-22 RPI 5 Camera Cable 200 mm
  • USB Cable Type A Male to Type C Male 3.00'
  • IMX219 Camera holder
  • 5 V 25 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
  • INPUT PLUG FOR WALL ADAPTER1
  • Modular Cable Plug to Plug 8p8c (RJ45, Ethernet) 3.28' (1.00m) Shielded
  • USB 2.0 Cable Type A Male to Micro B Male 3.28' (1.00 m) Shielded
  • Conn Shunt 1.27 mm black handle – Used to enable eMMC write mode on the CM5

Board Photos

MG_5339_CPNXSoM_TopViewExpand Image

CertusPro-NX System on Module (SoM) Board – Top View

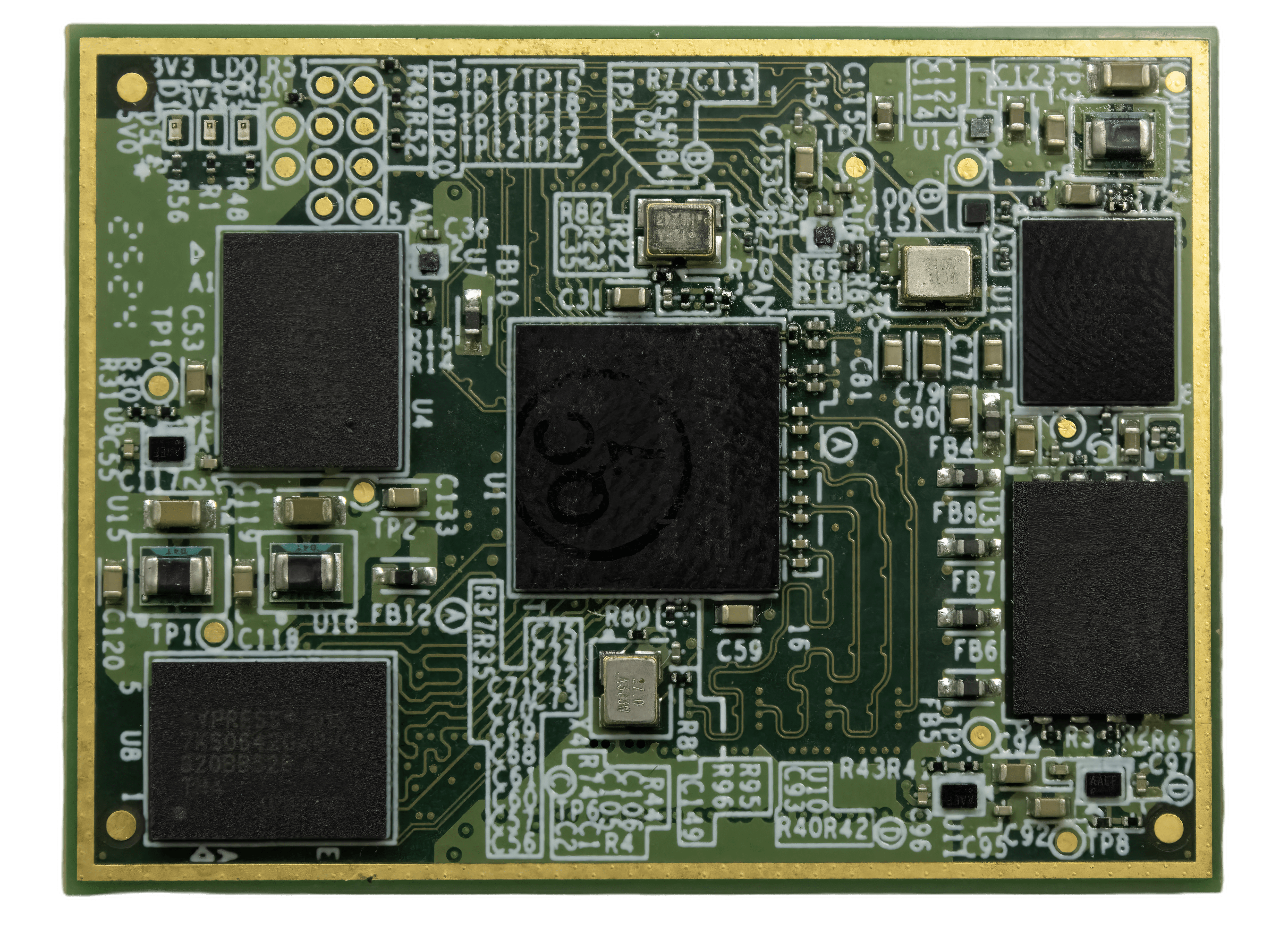

MG_5334_CPNXSoM_BottomViewExpand Image

CertusPro-NX System on Module (SoM) Board – Bottom View

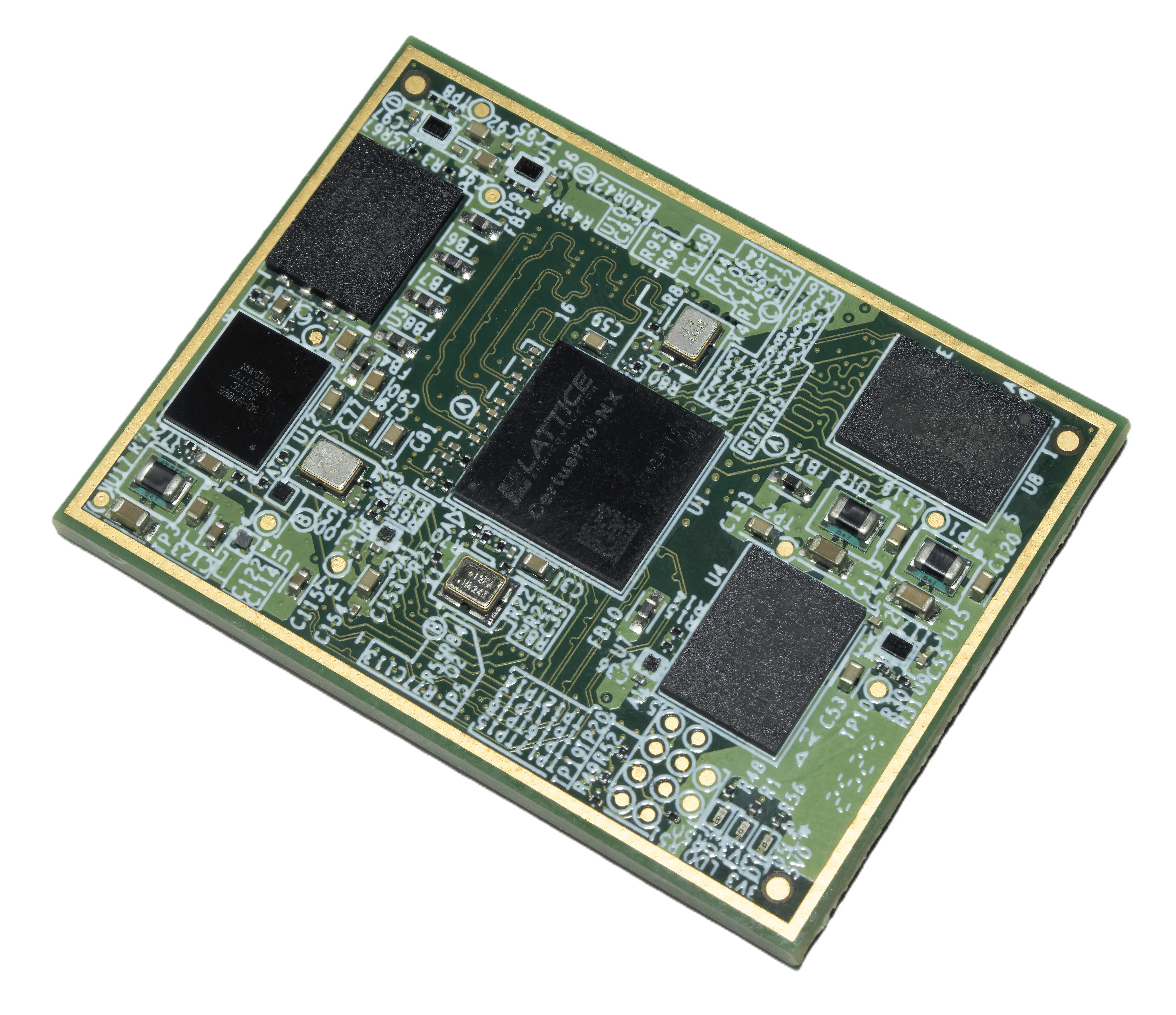

MG_5343_CPNXSoM_SideViewExpand Image

CertusPro-NX System on Module (SoM) Board – Side View

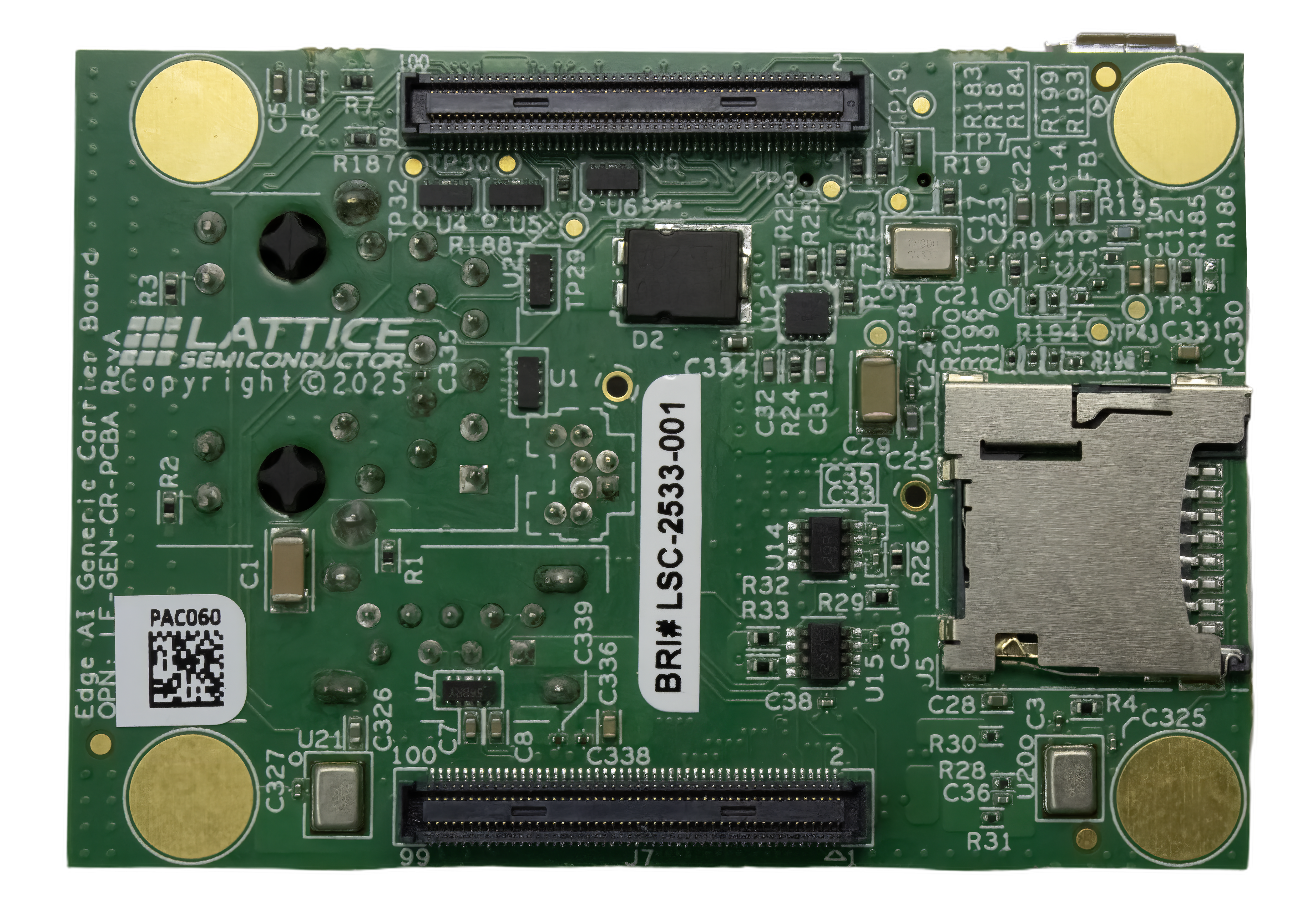

_MG_5351_CarrierBoard_TopViewExpand Image

Carrier Board – Top View

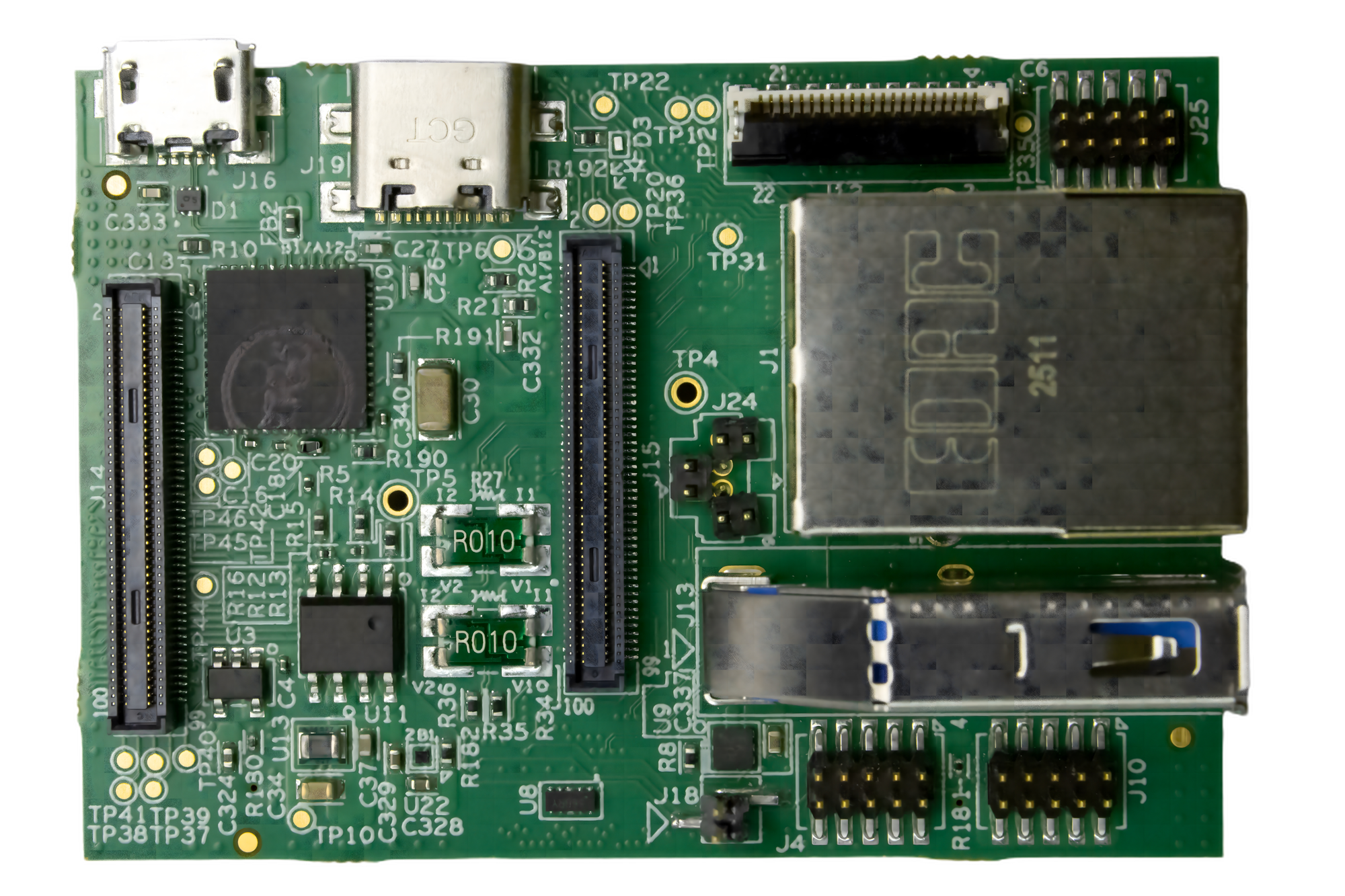

_MG_5350_CarrierBoard_BottomViewExpand Image

Carrier Board – Bottom View

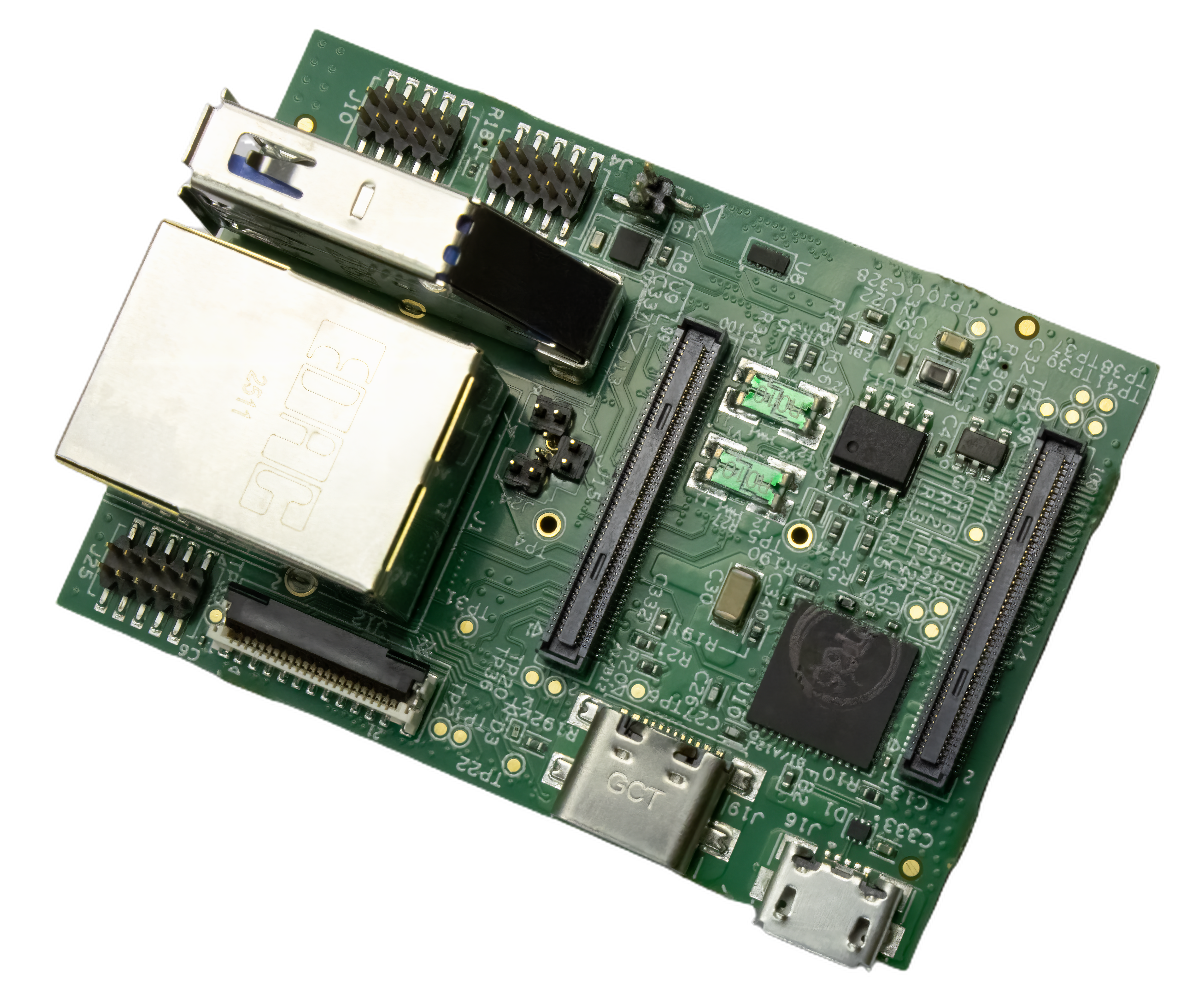

_MG_5352_CarrierBoard_SideViewExpand Image

Carrier Board – Side View

Ordering Information

  • Ordering Part Number: LFCPNX-SOM-EVN
  • Click here to find an authorized Lattice distributor near you

Documentation

Quick Reference
Technical Resources
Downloads
TITLE NUMBER VERSION DATE FORMAT SIZE
Select All
CertusPro-NX System on Module (SoM) Board - User Guide
FPGA-EB-02080 0.80 1/15/2026 PDF 5.6 MB
TITLE NUMBER VERSION DATE FORMAT SIZE
Select All
CertusPro-NX System on Module (SoM) Board - Schematics
12/18/2025 ZIP 1 MB
TITLE NUMBER VERSION DATE FORMAT SIZE
Select All
CertusPro-NX System on Module (SoM) Board - Layout
12/18/2025 BRD 35.1 MB
CertusPro-NX System on Module (SoM) Board - BOM
1.0 12/18/2025 XLSX 25.6 KB
CertusPro-NX System on Module (SoM) Board - Gerber Files
12/18/2025 ZIP 627 KB
