LatticeXP2 Advanced Evaluation Board

The LatticeXP2 Advanced Evaluation Board is a flexible platform designed to help you quickly evaluate the features and performance of the LatticeXP2 FPGA, or aid in development of custom designs. For more PCB options, see the LatticeXP2 Standard Evaluation Board.

Jump to

Kit Contents

  • LatticeXP2 Advanced Evaluation Board featuring
    • LatticeXP2-17 FPGA in 484fpBGA package (LFXP2-17E-6F484C)
    • DDR2 SDRAM SO-DIMM socket (32-bit)
    • Tri-speed Ethernet PHY (10/100/1G) / RJ45.
    • PCI 32-bit edge
    • LVDS Video Tx/Rx (via MDR-26 connectors)
    • PS/2 I/O
    • Compact Flash connector
    • SMAs for clock and general purpose I/O
    • A/D converter (Burr Brown ADS7842)
    • D/A converter (Burr Brown DAC7617)
    • USB host/controller
    • Built-in USB download capability (includes MachXO device)
    • RS-232 connector (female)
    • on-board oscillator (dip socket)
    • SPI flash memory for alternate configuration
    • LCD connector
    • 4 push-button switches
    • 7-segment LED
    • 8-bit switch
    • 8 general purpose LEDs
    • PAC1220AT8 for on-board power control
  • USB Cable for download (Note: this board has a Lattice download cable built-in, so only a standard USB cable is required for programming)
  • Wall Adapter Power Supply (Universal voltage input, US plugs)

Board Photos

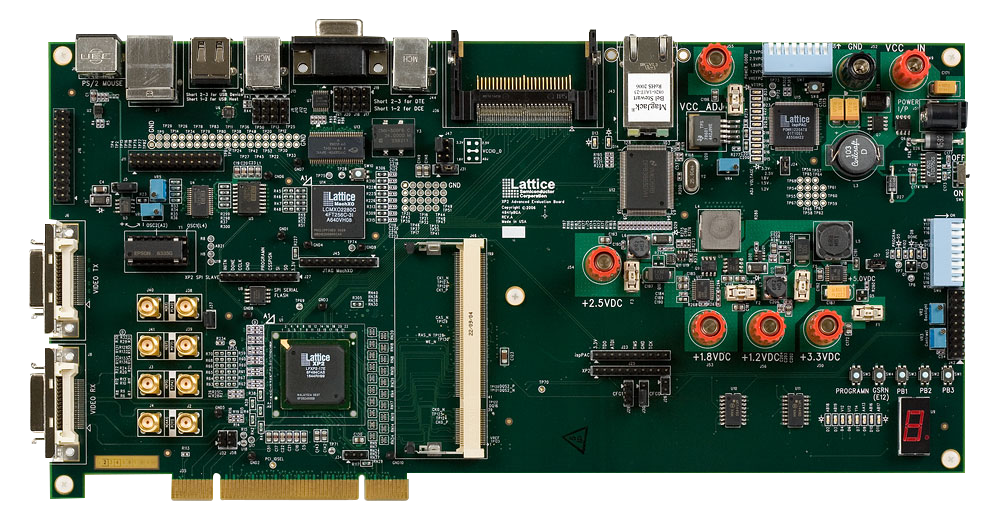

LatticeXP2 Advanced Evaluation Board Top View

Top View

Click image to enlarge

Ordering Information

  • This product is no longer available for purchase. The information provided here is for reference only
  • Reference number: LFXP2-17E-H-EVN

Note: LFXP2-17E-H-EVN had replaced LFXP2-17E-H-EV, which was not RoHS Compliant.

Documentation

Quick Reference
Information Resources
Downloads
TITLE NUMBER VERSION DATE FORMAT SIZE
Select All
LatticeXP2 Advanced Evaluation Board User's Guide
Describes the features and function of the LatticeXP2 Advanced Evaluation Board. Includes Schematics. 		EB30 01.5 3/11/2011 PDF 2.2 MB
Programming Cable - User Guide
Describes the features and recommended usage guidelines of Lattice ispDOWNLOAD Cables. 		FPGA-UG-02042 26.7 4/24/2024 PDF 992.6 KB
TITLE NUMBER VERSION DATE FORMAT SIZE
Select All
LatticeMico32 Tutorial
8.0 3/24/2010 PDF 1.5 MB
LatticeMico32 Tutorial for Diamond 2.0.1
2.0.1 10/2/2012 PDF 1.9 MB
TITLE NUMBER VERSION DATE FORMAT SIZE
Select All
LatticeXP2 Advanced Evaluation Board reference designs
Sample program for the LatticeXP2 Advanced Evaluation Board. Includes source, programming, and readme files for all 3 programmable Lattice devices on the board; LatticeXP2 FPGA, MachXO, and ispPAC-Power Manager. 		2/11/2009 ZIP 296 KB
