CrossLinkPlus LIF-MDF6000 Master Link Board

Bridging of multiple signaling standards - The board‘s key component is the CrossLinkPlus family device that features built in MIPI D-PHY Hardened blocks to support different bridging solutions.

MIPI CSI-2/DSI Hardened blocks - supports a variety of demos, encompassing different signaling logic standards bridging with MIPI® CSI-2/DSI interface.

On-chip flash memory – demonstrates instant-on (< 10 ms) configuration and flexible in-field reprogramming.

Features

  • Contains the Lattice CrossLinkPlus LIF-MDF6000 in 80-ball ckfBGA package
  • Includes SMA and Breakout I/O Link Board for interfacing and control
  • Provides easy programming interface via Mini USB Type-B connector to FTDI

Jump to

Kit Contents

  • LIF-MDF6000 Master Link Revision B Board
  • SMA IO Link Board
  • Breakout IO Link Board
  • USB cable for programming
  • 12 V AC adapter power supply
  • Quick Start Guide with Lattice Diamond software download information

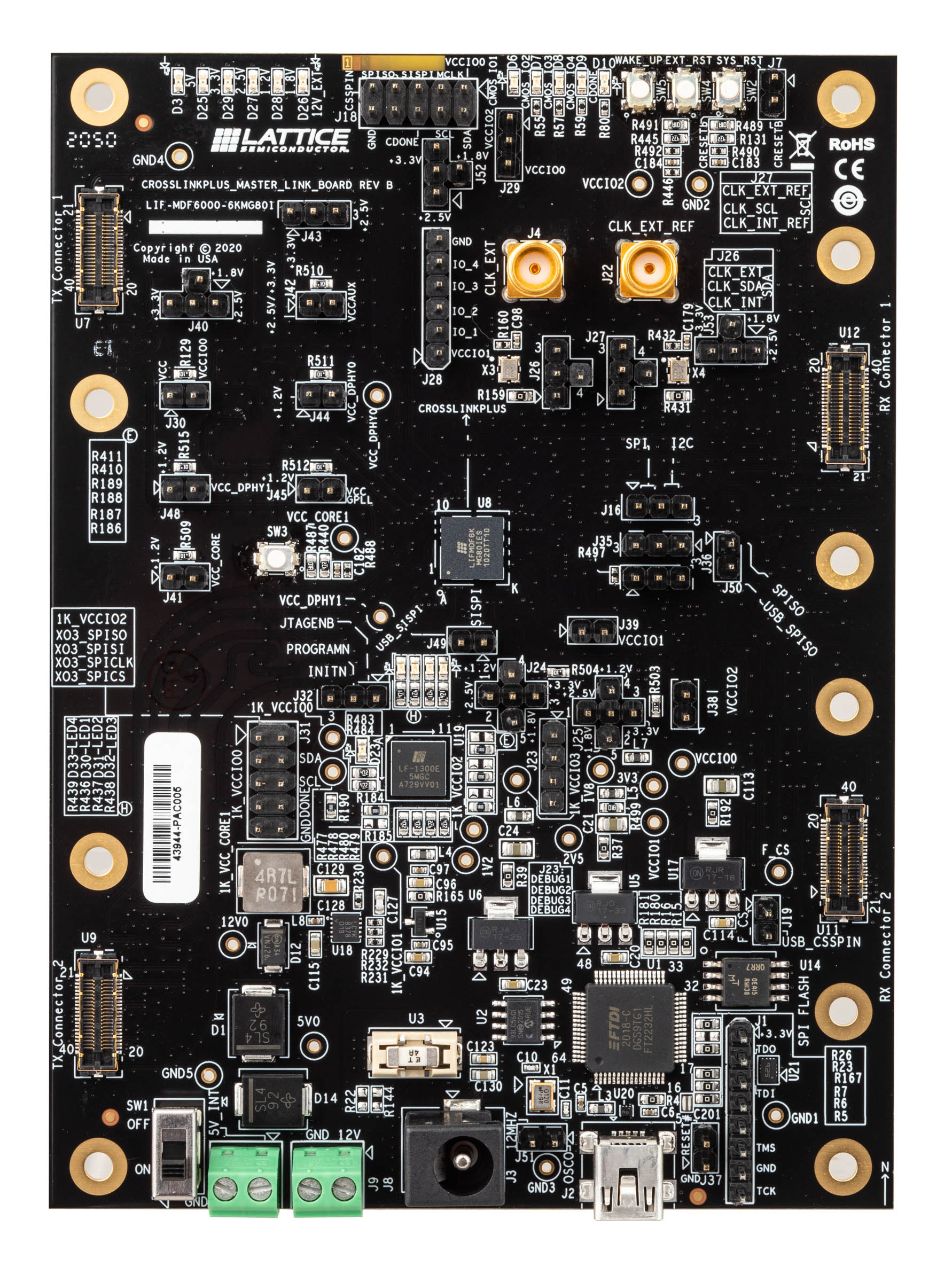

Board Photos

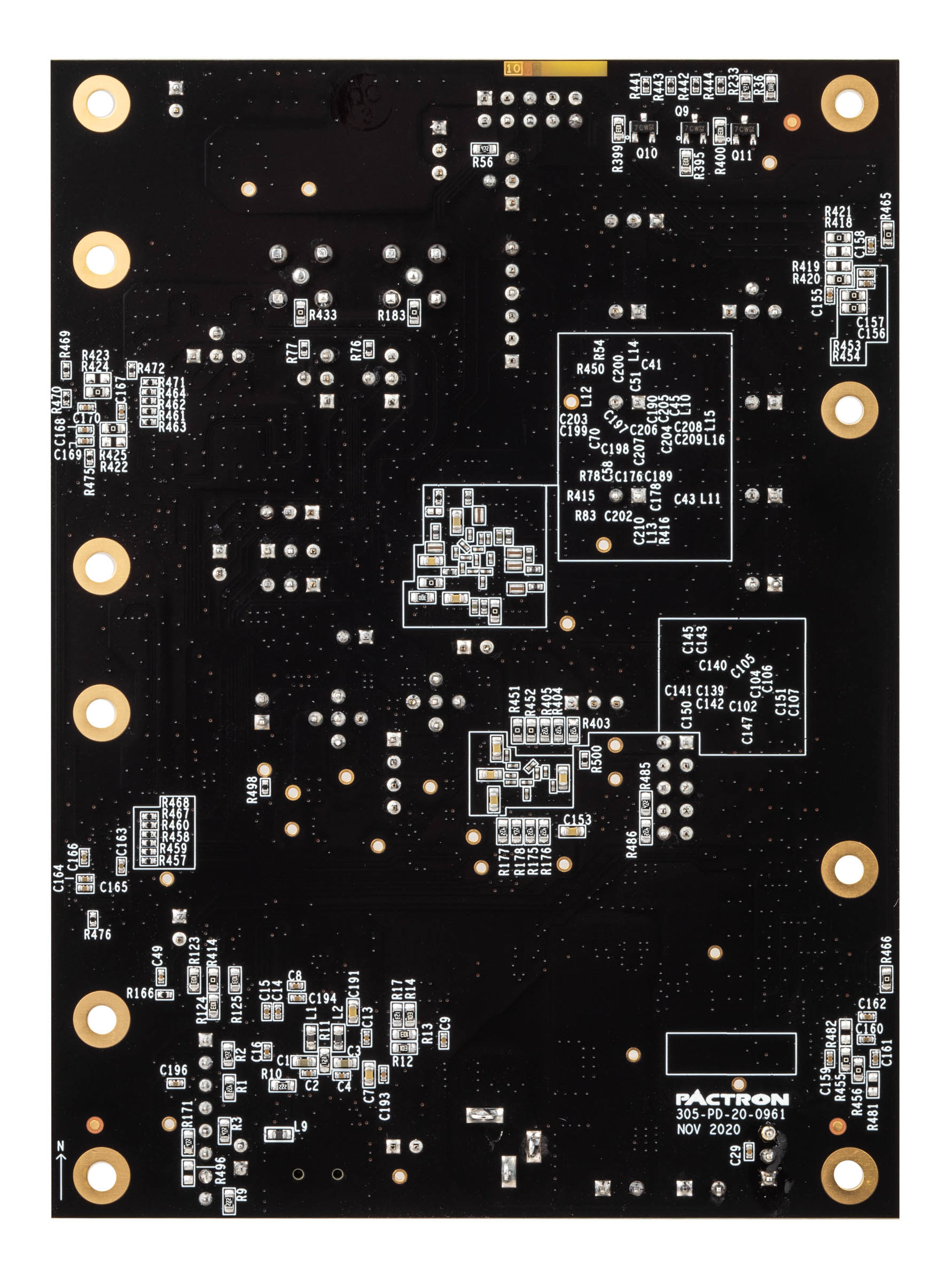

Bottom View

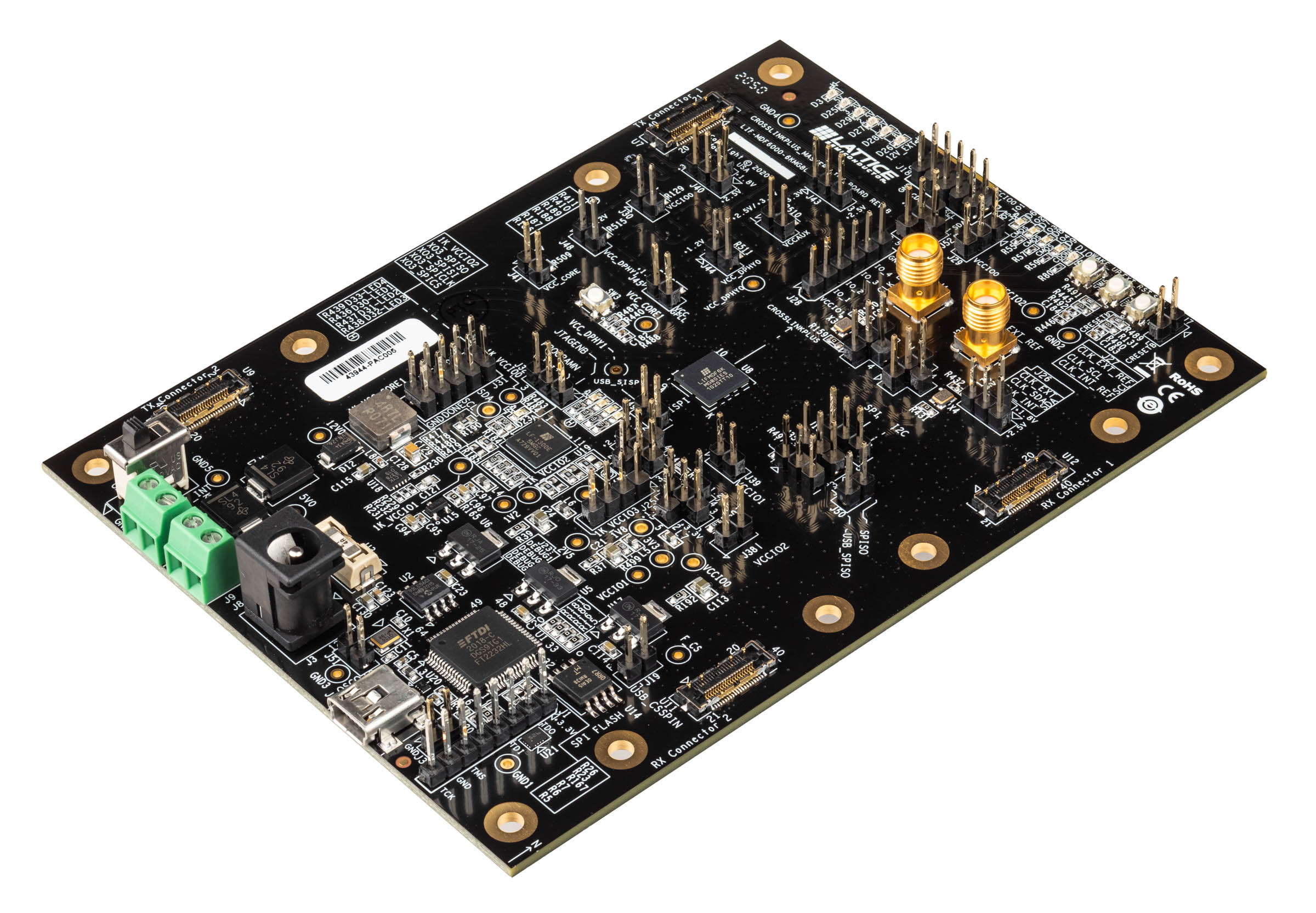

Side View

Ordering Information

  • Ordering Part Number: LIF-MDF6000-ML-EVN
  • Click here to find an authorized Lattice distributor near you
  • Click here to order now from the Lattice Online Store

Documentation

Quick Reference
Downloads
TITLE NUMBER VERSION DATE FORMAT SIZE
CrossLinkPlus LIF-MDF6000 Master Link Quick Start Guide
QS054 1.0 5/1/2021 PDF 458.5 KB
CrossLinkPlus LIF-MDF6000 Master Link Board User Guide
FPGA-EB-02041 1.1 8/31/2021 PDF 2.5 MB
TITLE NUMBER VERSION DATE FORMAT SIZE
CrossLinkPlus Master Link Board Demo Bitstream
1.0 7/28/2021 JED 2.1 MB
CrossLinkPlus Master Link Board Project Files
1.0 7/27/2021 ZIP 1.8 MB
