Automotive Video Recorders

Implement the entire camera sub-system using Lattice's low cost, low power FPGAs.

Flexibility - Lattice FPGAs provide your system the flexibility to interface with a wide range of image sensors, memory, panels, etc.

ISP in a single chip -Lattice has a complete suite of image signal processing pipeline (ISP) IP cores such as defective pixel correction, de-bayer, color correction matrix, gamma correction, etc, that can be implemented in a single Lattice FPGA.

Innovative video solutions on demand - With flexible I/Os, embedded oscillators/PLLs and customizable logic, Lattice FPGAs can deliver compelling video solutions.

Features

  • Fully production-ready HDR camera design
  • Supports up to 16 megapixel sensors
  • Supports up to two sensors simultaneously
  • Full 60fps in streaming mode, needs no external frame buffer

For more detail on reference boards and designs, please visit Dual Sensor InterfaceHDR-60 Video Camera Development Kit and Video Compression (IP Partner site).

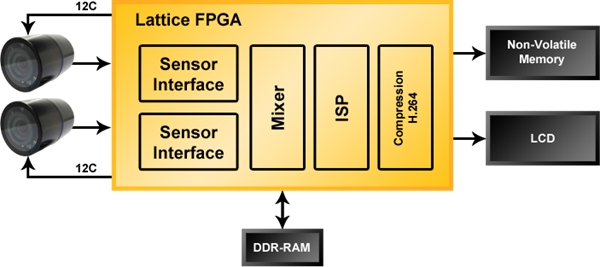

Block Diagram

Video Recorders Image

Reference Designs

For more detail on reference boards and designs, please visit dual sensor interfaceHDR-60 Video Camera Development Kit and video compression (IP Partner site).
