MIPI RFFE Interface Applications

Webpage

MIPI Camera and Display Applications

Board

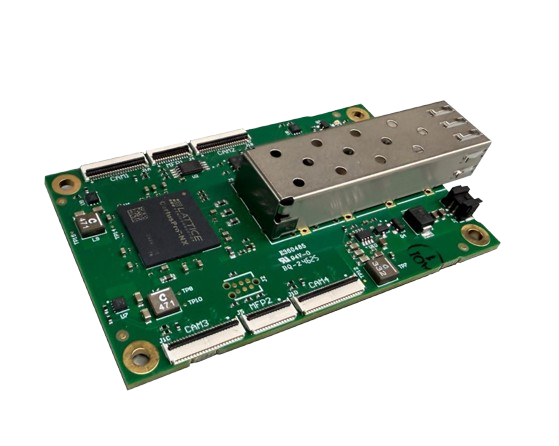

DA322 Holoscan MIPI Adapter

Highly integrated NVIDIA Holoscan Quad MIPI Adapter enabling multi-modal sensor integration over 10G Ethernet. Compatible with all NVIDIA products from Edge to Cloud.

Reference Design

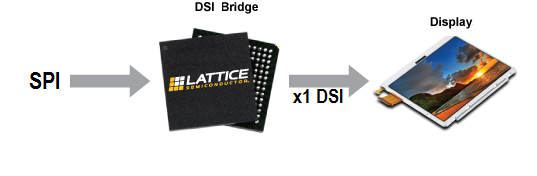

SPI to MIPI D-PHY

Bridges and decompresses video transmitted over SPI to DSI displays, up to 108Mbps. High speed and low-power modes.

Reference Design

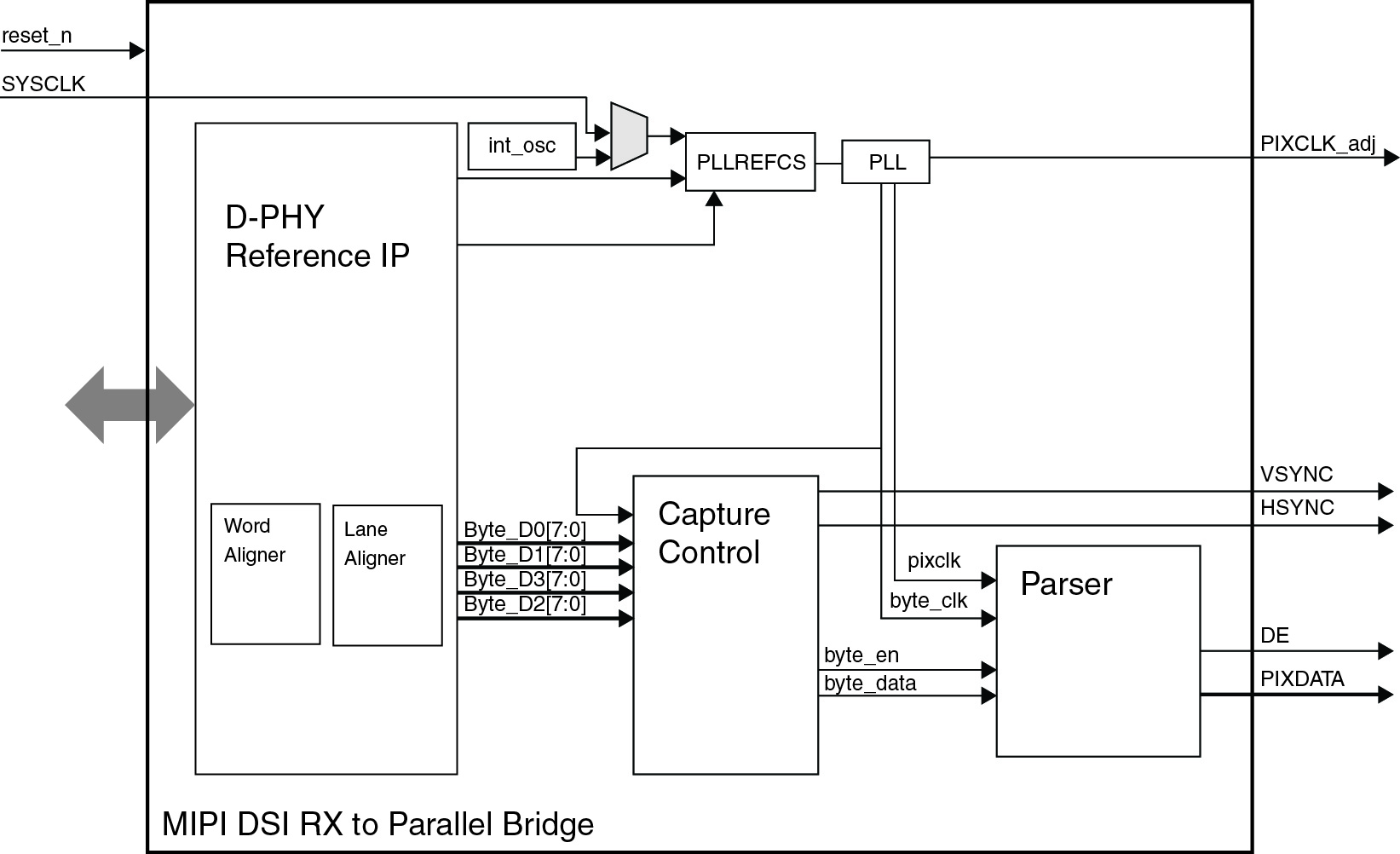

MIPI DSI Receive Bridge

Allows an AP (Application Processor) or other DSI source to interface to a non-DSI (such as LVDS) display. Up to 4 data lanes at 900 Mbps per lane

Reference Design

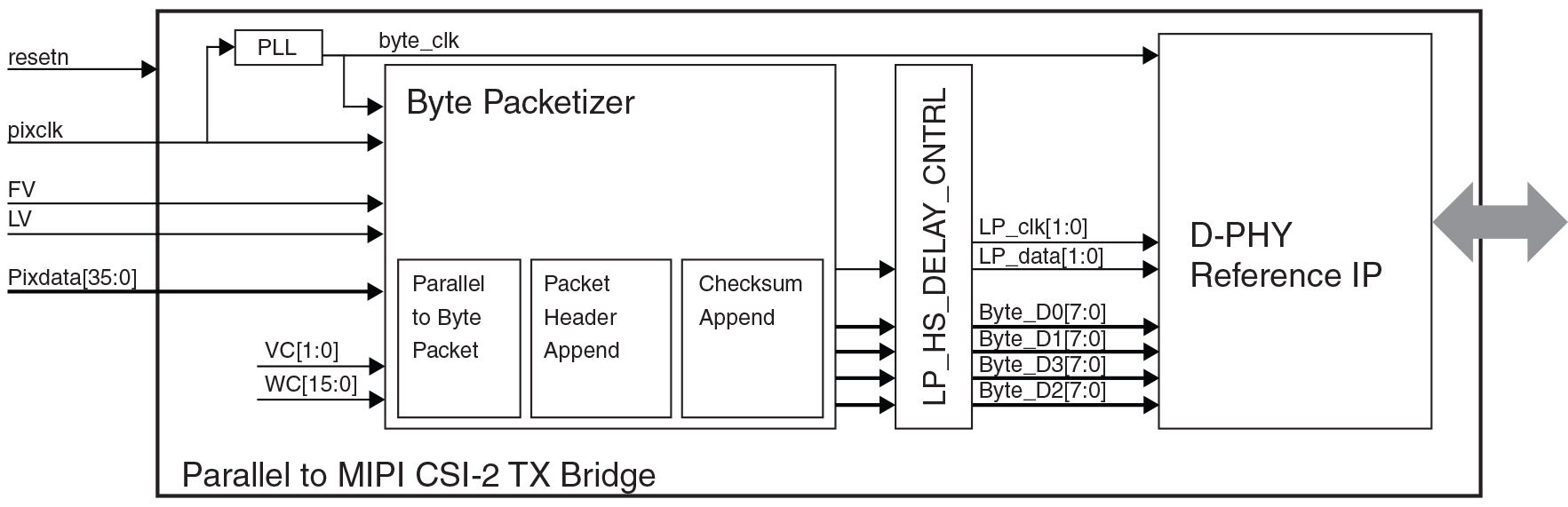

MIPI CSI-2 Transmit Bridge

Enables bridging of image inputs like subLVDS or HiSPI to MIPI CSI-2. Up to 4 lanes at 900 Mbps per lane

Reference Design

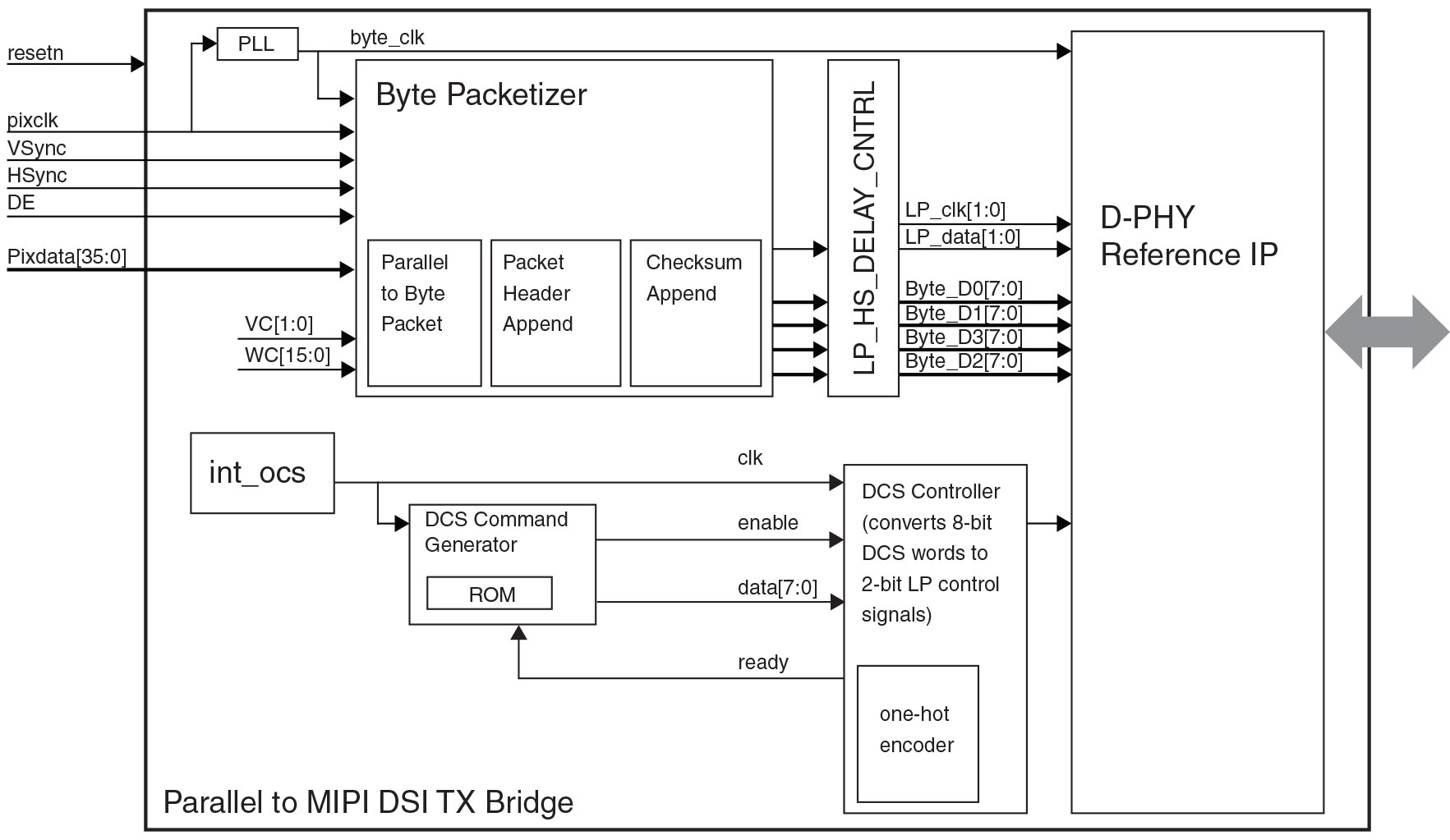

MIPI DSI Transmit Bridge

Enables driving of a DSI compatible display or other receiving device.

Reference Design

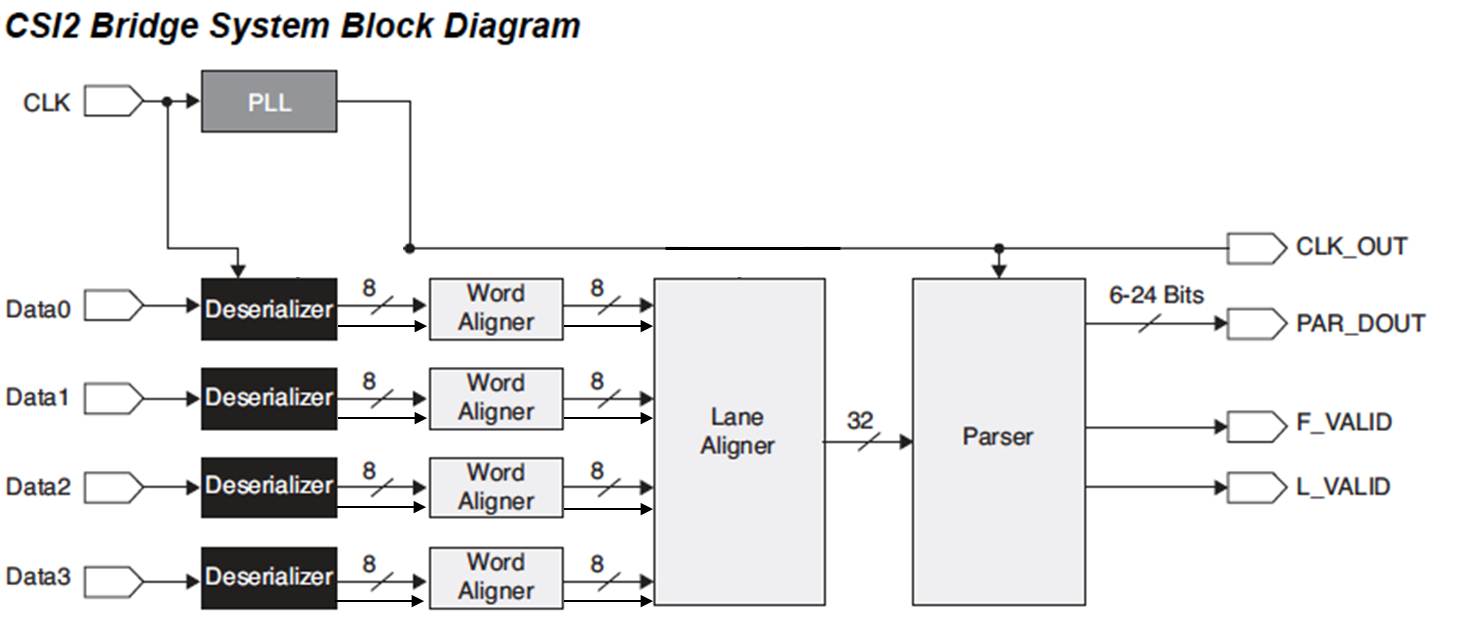

MIPI CSI-2 Receive Bridge

Enables a mobile CSI-2 (Camera Serial Interface) image sensor to interface to an embedded Image Signal Processor. Up to 4 lanes at 900 Mbps per lane

Reference Design

​​1 to N MIPI CSI-2/DSI Duplicator Reference Design​

The 1 to N MIPI CSI-2DSI Duplicator reference design stream on one RX channel is duplicated and sent out on one to four TX channels.

Board

SDI to MIPI CSI-2 Bridge by Antmicro

This device using Lattice CrossLink LIF-MD6000-6KMG80I that enables connecting industrial and filmmaking cameras and video accessories to edge AI platforms which often include the MIPI CSI-2 interface.

IP Core

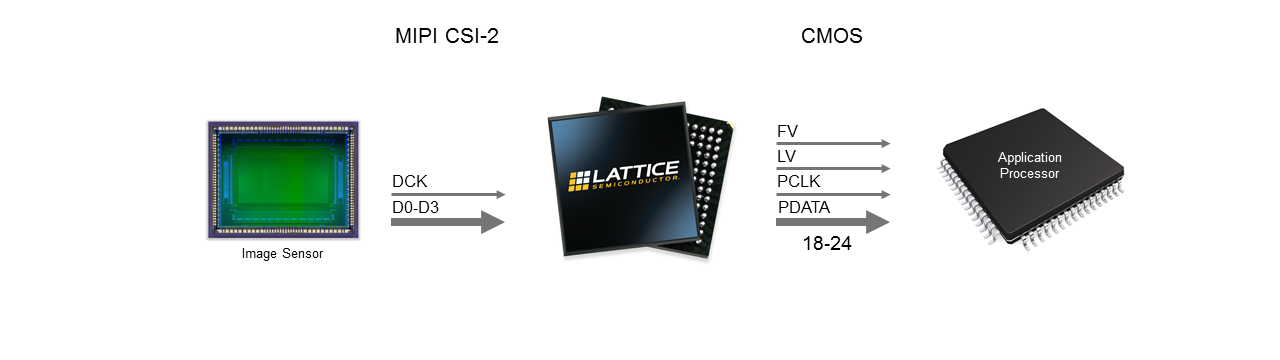

MIPI D-PHY to CMOS Interface Bridge

Archived IP - Use newer Modular MIPI/D-PHY IP for this function. Bridges MIPI CSI-2 camera data to CMOS at up to 6 Gbps.

Reference Design

MIPI CSI-2 to Ethernet Reference Design

The MIPI CSI-2 to Ethernet reference design is an advanced system that integrates two camera sensors with each Lattice Avant™ Versa board.

Reference Design

SLVS-EC to MIPI CSI-2 Reference Design

Modular MIPI/D-PHY Reference Design - Support advance camera and display interconnections in mobile devices that enable higher performance sensor with optimized power.

Reference Design

MIPI CSI-2 to HDMI Reference Design

MIPI CSI-2 to HDMI Reference Design includes the synthesizable MIPI-HDMI core design & stimulus generators, checkers, & a testbench necessary to simulate the design

Reference Design

MIPI DSI/CSI-2 to Parallel Bridge Reference Design

MIPI to Parallel allows quick interface between a processor and a display using RGB; or between a camera and a processor with a Parallel interface.

IP Core

MIPI DSI to OpenLDI LVDS Display Interface Bridge

Archived IP - Use newer Modular MIPI/D-PHY IP for this function. Bridges MIPI DSI data to an OpenLDI/LVDS display.

Webpage

Lattice to Showcase MIPI CSI-2 and DSI Connectivity Solutions at the 2014 MIPI Alliance All-Member Meeting in Shanghai

Demo

Lattice mVision MIPI DSI to DisplayPort Demonstration

The MIPI Display Serial Interface (DSI) to DisplayPort (DP) bridge design features a MIPI D-PHY receiver front-end configuration with four lanes.

IP Core

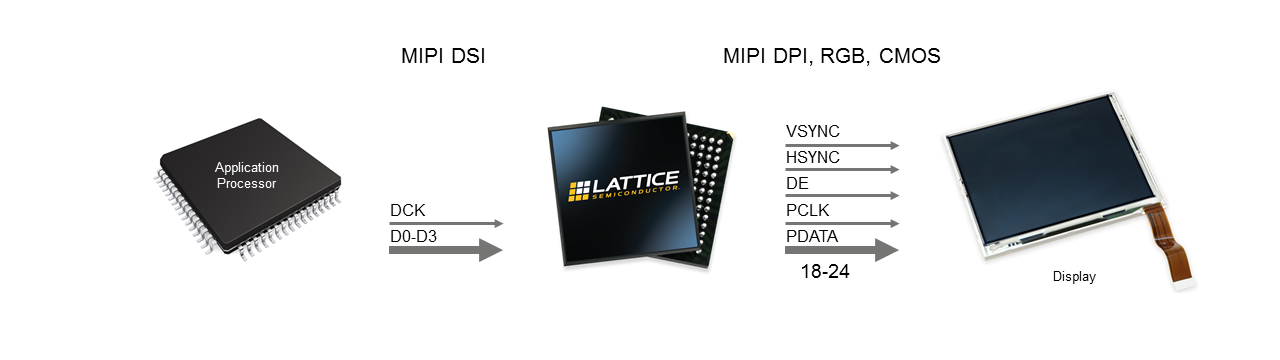

MIPI DSI to RGB Display Interface Bridge

Archived IP - Use newer Modular MIPI/D-PHY IP for this function. Bridges MIPI DSI data to an RGB/CMOS display.

IP Core

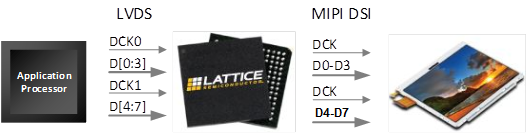

OpenLDI LVDS to MIPI DSI Display Interface Bridge

Archived IP - Use newer Modular MIPI/D-PHY IP for this function. Bridges OpenLDS LVDS data to a MIPI DSI display.
