Lattice SupplyGuard™

End-to-End Supply Chain Protection Service

Related Products

Related Applications


Dynamic Trust Whitepaper

Newsletter Subscription

Provides Trust in Untrusted Environments – The Lattice SupplyGuard™ service provides customers with factory-locked ICs. These can only be programmed using a configuration bitstream which has been developed, signed and encrypted by the intended customer.

Protection Against IP Theft – The signed, encrypted configuration bitstream can only be loaded onto a factory-locked IC which has been factory-provisioned for that customer bitstream.

Secure Programming with Standard Methods – Standard factory bulk programmers are used to program the encrypted, signed configuration bitstream onto the factory-locked ICs. The secure programming portion occurs fully within the MachXO3D IC. This low cost approach provides high security within today’s high-volume supply chain.

SupplyGuard

Features

  • SupplyGuard™ assigns a unique ordering part number to each customer. The unique part number corresponds to the encryption credentials which lock the Lattice FPGA.
  • Extends Platform root of trust protection to the entire supply chain, from IC manufacture through final product end of life.
  • Protection against overbuilding, cloning, counterfeiting and unauthorized hardware modification.
  • Ability to track devices through the supply chain.
  • No special high security programming equipment, processes or facilities needed: Lowers cost of secure manufacturing.
  • Authentication credentials of external ICs are programmed onto MachXO3D as part of the customer’s encrypted configuration bitstream. This securely transfers cryptographic ownership of the MachXO3D IC and other ICs in the system to the customer during factory programming.

Jump to

Dynamic Trust

SupplyGuard

System Architecture

Lattice SupplyGuard

Demos

Lattice Sentry Root of Trust Demo for MachXO3D

Demo

Lattice Sentry Root of Trust Demo for MachXO3D

A complete bitstream/firmware package which helps you demonstrate and test a NIST 800-193-compliant PFR solution on the Lattice Sentry Demo Board for MachXO3D
MachXO3D
NIST, RISC-V, Lattice Sentry, Security, Defense
Lattice Sentry Root of Trust Demo for MachXO3D

IP Cores

​​eSPI Target IP Core​

IP Core

​​eSPI Target IP Core​

​​Lattice eSPI Target IP Core is compliant with the Intel eSPI specifications & has its own virtual wire channel in the user interface.​
MachXO5-NX, Mach-NX, MachXO3D, MachXO3
APB, AHB-Lite, Lattice Sentry
​​eSPI Target IP Core​
Lattice Sentry PLD Interface IP Core

IP Core

Lattice Sentry PLD Interface IP Core

Lattice Semiconductor Customer Programmable Logic Devices (PLD)implements a bidirectional mailbox for sending and receiving messages.
Mach-NX, MachXO5-NX
AHB-Lite, APB, FPGA, RTL, Lattice Propel, PLD, Lattice Sentry, Lattice Sentry PFR IP Package, Security
Lattice Sentry PLD Interface IP Core
Lattice Sentry SMBus Mailbox IP Core

IP Core

Lattice Sentry SMBus Mailbox IP Core

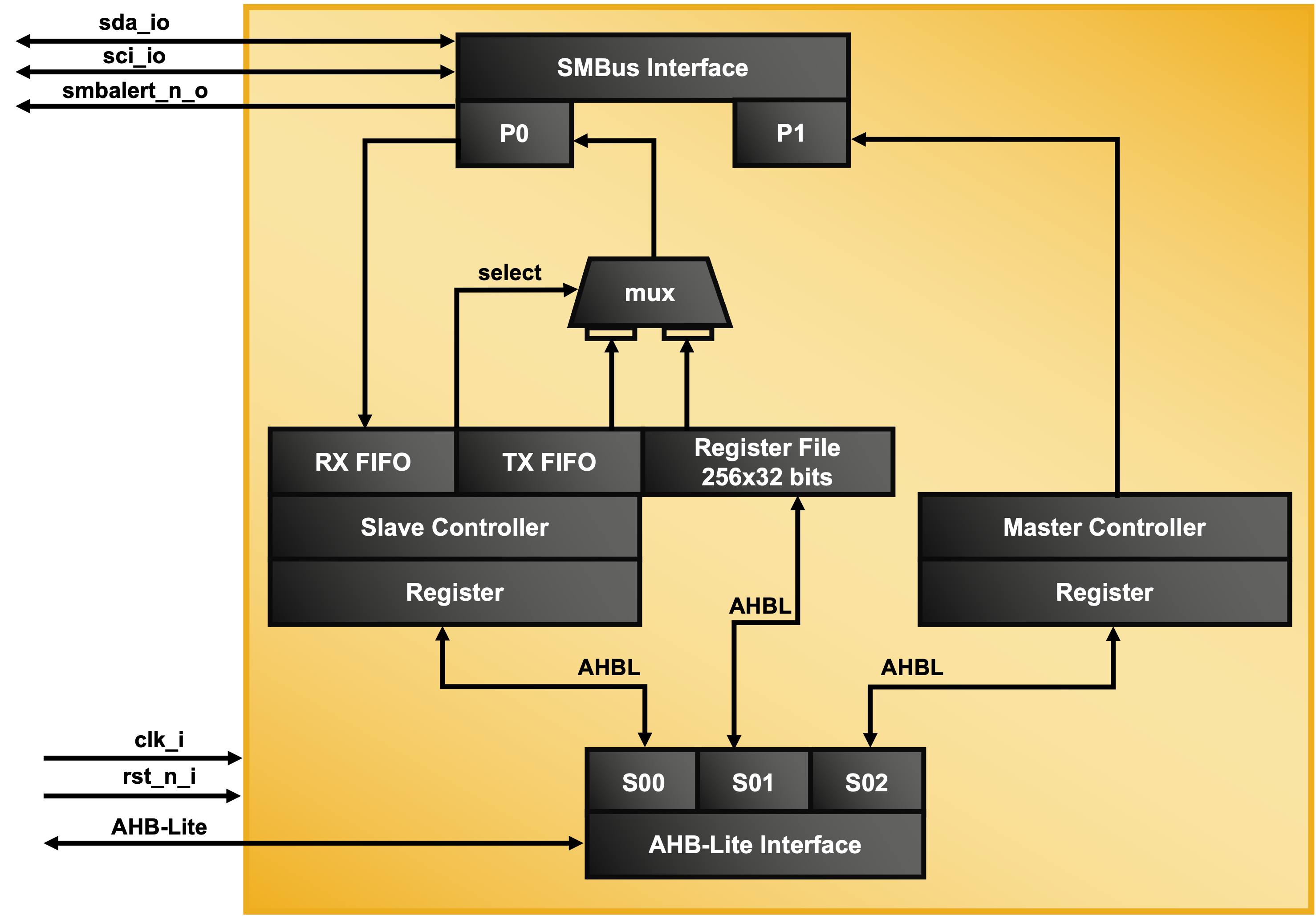

SMBus, a two-wire interface that support fairness arbitration and compatible with AHB-Lite specification. Target devices are Mach-NX and MachXO3D.
