  • LatticeECP2M Low Profile Module

    Board

    LatticeECP2M Low Profile Module

    No longer available - for reference only. Includes the LatticeECP2M-50 FPGA on a low profile module that can accommodate advanced data processing and embedded applications.
    LatticeECP2/M

    LatticeECP2M Low Profile Module

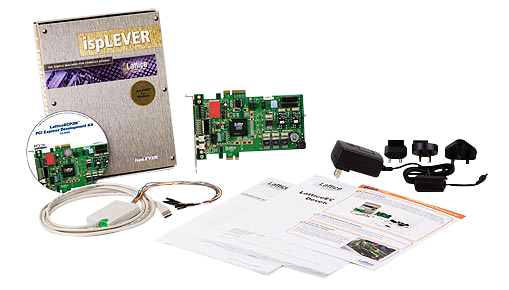

  • LatticeECP2M PCI Express開発キット

    Board

    LatticeECP2M PCI Express開発キット

    No longer available - for reference only. A complete hardware/software development for PCI Express with the LatticeECP2M FPGA + Both x1 and x4 PCIe edges.
    LatticeECP2/M
    PCIe
    LatticeECP2M PCI Express開発キット
  • LatticeECP2M SMPTE SDI Evaluation Board

    Board

    LatticeECP2M SMPTE SDI Evaluation Board

    No longer available - for reference only. For development and evaluation of the LatticeECP2M in video applications. + SERDES interfaces for SMPTE 259 and 292.
    LatticeECP2/M
    SDI Video, SMPTE/Broadcast Video
    LatticeECP2M SMPTE SDI Evaluation Board
  • LatticeMico32/DSP Development Board

    Board

    LatticeMico32/DSP Development Board

    No longer available - for reference only. Designed to help with Mico32 development with the LatticeECP2 FPGA + Flash and DDR memory for programming.
    LatticeECP2/M
    DDR SDRAM, DSP, Mico
    LatticeMico32/DSP Development Board

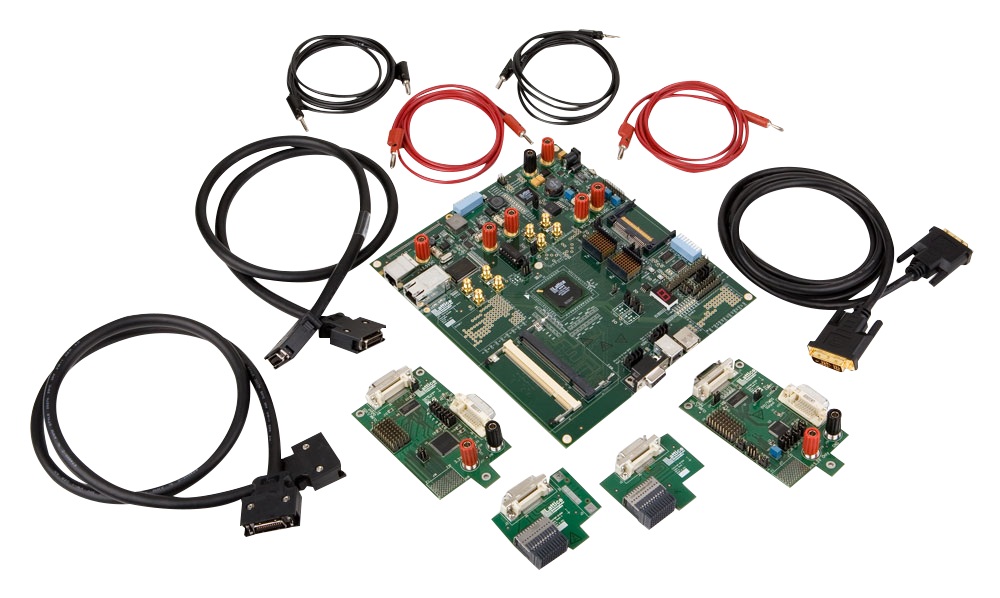

  • ラティス7：1LVDSビデオ・デモ・キット

    Board

    ラティス7：1LVDSビデオ・デモ・キット

    No longer available - for reference only. A set of boards and cables that demonstrate the implementation of a 7:1 LVDS solution using the LatticeECP2.
    LatticeXP2, LatticeECP2/M
    LVDS Video
    ラティス7：1LVDSビデオ・デモ・キット

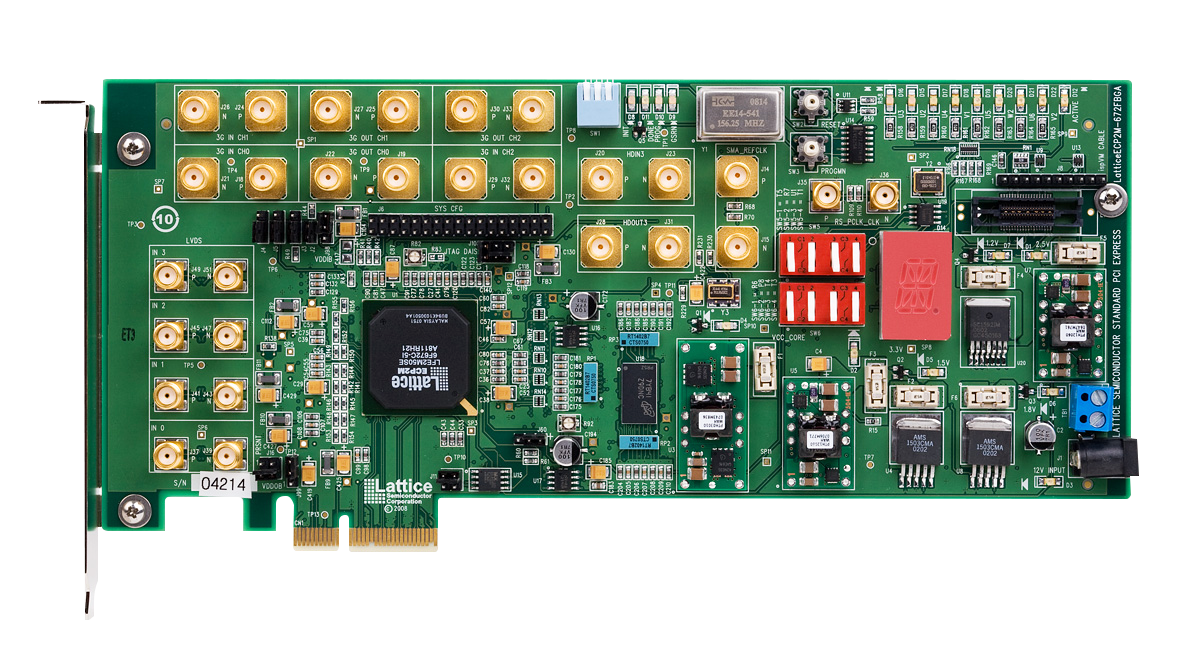

  • ラティスECP2M PCIエクスプレスx4評価ボード

    Board

    ラティスECP2M PCIエクスプレスx4評価ボード

    No longer available - for reference only. For development and evaluation of the LatticeECP2M (LFE2M50E-6F672) in PCI Express applications + x4 PCI Express edge.
    LatticeECP2/M
    PCIe
    ラティスECP2M PCIエクスプレスx4評価ボード
  • ラティスECP2M SERDES評価ボード

    Board

    ラティスECP2M SERDES評価ボード

    No longer available - for reference only. For development and evaluation of the SERDES performance of the LatticeECP2M FPGA (LFE2M50E-6F672C) + SMA for SERDES.
    LatticeECP2/M
    SERDES
    ラティスECP2M SERDES評価ボード
  • LatticeECP2 Advanced Evaluation Board

    Board

    LatticeECP2 Advanced Evaluation Board

    No longer available - for reference only. For general development and evaluation of the LatticeECP2 FPGA (LFE2-50E-6F672C) + Dual DDR2 SODIMM memory sockets.
    LatticeECP2/M
    DDR SDRAM, Ethernet
    LatticeECP2 Advanced Evaluation Board
  • LatticeECP2 Standard Evaluation Board

    Board

    LatticeECP2 Standard Evaluation Board

    No longer available - for reference only. For basic development and evaluation of the LatticeECP2 FPGA (LFE2-50E-6F484C FPGA) + 64-bit PCI/PCI-x edge connector.
    LatticeECP2/M

    LatticeECP2 Standard Evaluation Board
  • ラティスECP2アドバンスト　－　TI ADS6000 EVMインターフェース・カード

    Board

    ラティスECP2アドバンスト　－　TI ADS6000 EVMインターフェース・カード

    No longer available - for reference only. Connects theLatticeECP2 Advanced Evaluation board to an evaluation module for the TI ADS6000 family + Molex/SPI4.2.
    LatticeECP2/M
    ADC/DAC
    ラティスECP2アドバンスト　－　TI ADS6000 EVMインターフェース・カード
