FFT Compiler IP Core

The FFT Compiler IP Core can be configured to perform forward FFT, inverse FFT (IFFT), or port selectable forward/inverse FFT.

ECP5 / ECP5-5G, LatticeECP3, LatticeECP2/M, Certus-NX, CertusPro-NX, MachXO5-NX, CrossLink-NX, Avant-E, Avant-G, Avant-X, Certus-N2

Data Communication, DSP, Guidance Systems, Automotive, DSP Bundle, SDR, Smart munitions

IP Core

PCI Express x1, x4 Root Complex Lite IP Core

Provides a PCI Express x1 and x4 root complex solution from the electrical SERDES interface, physical layer, data link layer and a minimum transaction layer in PCIe protocol stack

ECP5 / ECP5-5G, LatticeECP3, LatticeECP2/M

PCIe, Guidance Systems, Automotive, PCIe Bundle, SDR, Smart munitions

IP Core

Timer/Counter IP Core

The Lattice Semiconductor Timer/Counter IP is used to track timeouts in the system, and it generates an interrupt to the CPU when a timeout is detected.

Certus-NX, CrossLink-NX, Avant-E, Avant-G, Avant-X, CertusPro-NX, CrossLink, CrossLinkPlus, ECP5 / ECP5-5G, iCE40, iCE40 Ultra / UltraLite, iCE40 UltraPlus, LatticeECP2/M, LatticeECP3, LatticeSC/M, LatticeXP2, Mach-NX, MachXO, MachXO2, MachXO3 – 制御/ブリッジFPGA, MachXO3D, MachXO5-NX, Certus-N2

AMBA, Lattice Propel, Lattice Diamond, Lattice Radiant, APB, AHB-Lite, Lattice Sentry, Lattice Sentry PFR IP Package, Security

Reference Design

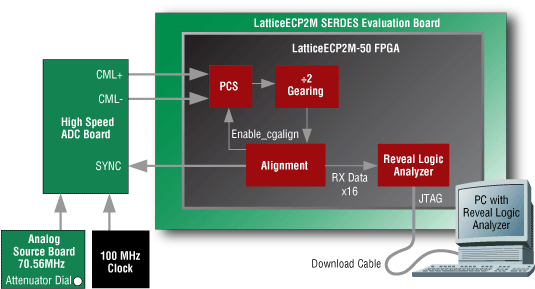

JESD204 ADC リファレンス・デザイン

Provides designers an ideal platform for a low cost, low power and small footprint solution for FPGA based serial data acquisition and processing

LatticeECP2/M

ADC/DAC, DSP, SDR

IP Core

Tri-Speed イーサネット・メディアアクセス・コントローラ

ホストプロセッサとイーサネットネットワーク間でデータの送受信をします。 IEEE 802.3準拠、10/100/1000 オペレーションをサポート。

ECP5 / ECP5-5G, LatticeECP3, LatticeECP2/M, LatticeXP2, LatticeSC/M, CrossLink-NX, Certus-NX, CertusPro-NX, MachXO5-NX, Avant-E, Avant-G, Avant-X, Certus-N2

Data Communication, Ethernet, Defense, Automotive, APB, AXI, AXI-Lite Interface, AHB, Ethernet Bundle

IP Core

カラー・スペース・コンバータの概要

The Lattice Color Space Converter IP Core is widely parameterizable and can support any custom color space conversion requirement.

ECP5 / ECP5-5G, LatticeECP3, LatticeECP2/M, LatticeSC/M, LatticeXP2, CrossLink-NX, Certus-NX, CertusPro-NX, Avant-E, MachXO5-NX, Avant-G, Avant-X, Certus-N2

Image Processing, JPEG CODEC, Lattice mVision, UAVs, Automotive

IP Core

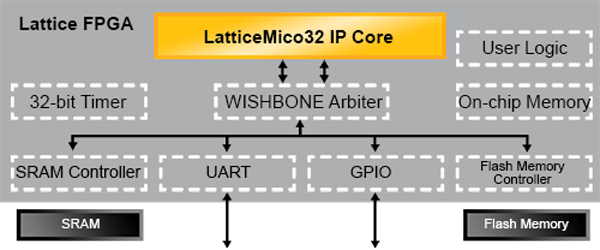

LatticeMico32、オープンで無償の32ビット・ソフトプロセッサ

A 32-bit Harvard, RISC architecture soft microprocessor, available for free with an open IP core license. Many compatible modules and IP are available.

LatticeECP3, LatticeXP2, LatticeECP2/M

GPIO Control, Mico, Soft Processor, UART, Wishbone, TOR Switch, Defense

IP Core

FlinQ – Flawless Link Quality Encoder / Decoder IP-cores

FlinQ™ enables higher quality and a significant gain of efficiency for high performance and reliable visual communication over both wired and wireless links.

CrossLink-NX, Certus-NX, CertusPro-NX, LatticeECP2/M, ECP5 / ECP5-5G

Data Compression, Camera, Image Processing, Video Tx/Rx, Video Compression

IP Core

TICO-RAW Encoder/Decoder IP-cores

TICO-RAW is a revolutionary RAW compression, extremely tiny & low power, with low latency and lossless quality to handle camera and sensor data (Bayer).

CrossLink-NX, Certus-NX, CertusPro-NX, LatticeECP2/M, ECP5 / ECP5-5G

Data CODEC, Data Compression, Camera, Debayer, Image Processing, JPEG CODEC, SMPTE/Broadcast Video, Video Tx/Rx, Video Compression, RAW Codec

IP Core

TICO-XS (JPEG XS) Encoder / Decoder IP-cores

JPEG XS is the new revolutionary codec, extremely tiny in Lattice FPGA, robust for real-time operation with zero latency and lossless quality

CrossLink-NX, Certus-NX, CertusPro-NX, LatticeECP2/M, ECP5 / ECP5-5G

Camera, Image Processing, JPEG, JPEG CODEC, SMPTE/Broadcast Video, JPEG XS, Video Compression

IP Core

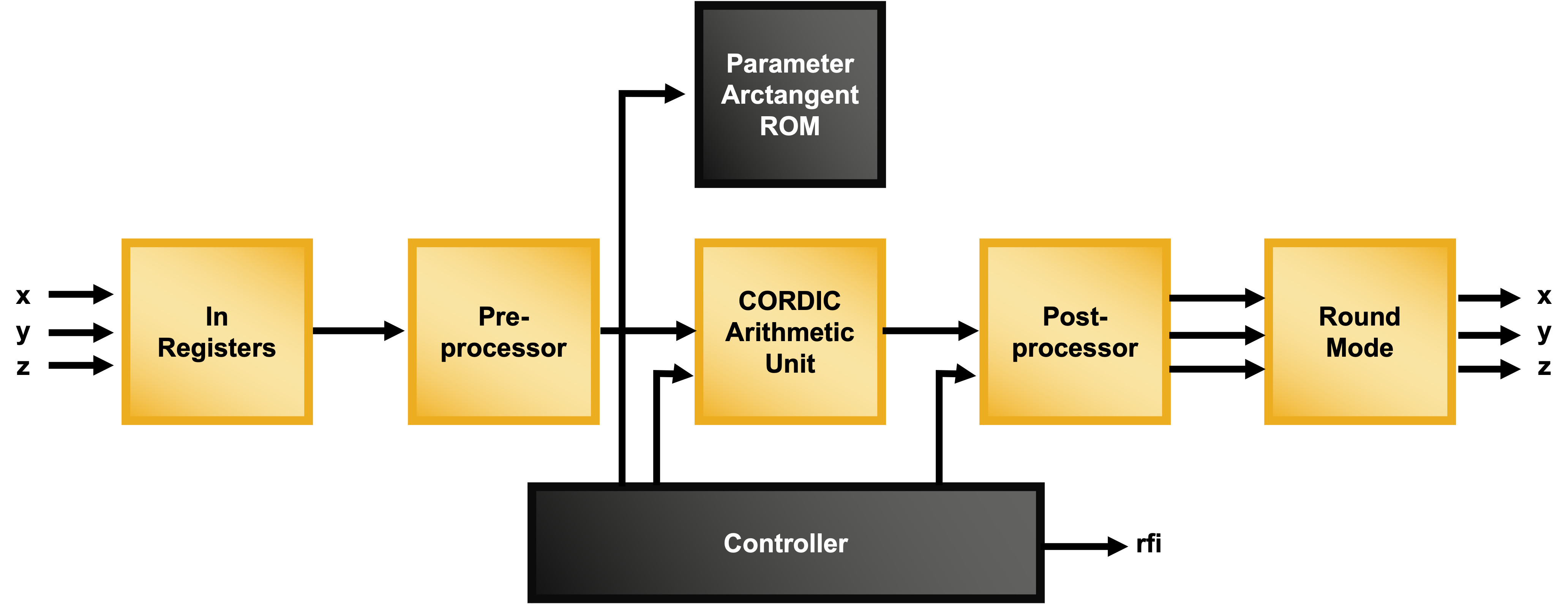

Coordinate Rotational Digital Computer (CORDIC) IP Core

The Lattice CORDIC IP uses full internal precision while allowing variable output precision with several choices for rounding.

ECP5 / ECP5-5G, LatticeECP3, LatticeECP2/M, LatticeSC/M, LatticeXP2, Certus-NX, CertusPro-NX, MachXO5-NX, CrossLink-NX, Avant-E, Avant-G, Avant-X, Certus-N2

DSP, Automotive, DSP Bundle

IP Core

XAUI 10Gbイーサネット・アタッチメント・ユニット・インターフェース

10Gb Ethernet Attachment Unit Interface or XAUI includes support for the XAUI which is used to interface with physical layer devices in 10GbE networks.

ECP5 / ECP5-5G, LatticeECP3, LatticeECP2/M, CertusPro-NX, Avant-G, Avant-X, Certus-N2

Data Communication, Ethernet, X/S/RGMII, XAUI, Defense

IP Core

ガンマ補正

The Lattice Gamma Corrector IP core is a multi-color plane gamma correction system that can support almost any custom gamma correction requirement.

ECP5 / ECP5-5G, LatticeECP3, LatticeECP2/M, LatticeXP2, CertusPro-NX, Avant-E, Avant-G, Avant-X, CrossLink-NX, Certus-NX, MachXO5-NX, Certus-N2

Image Processing, Lattice mVision, UAVs, DSP Bundle

IP Core

2D Scaler IP Core

Highly-configurable design to convert input video frames of one size to output video frames of a different size

ECP5 / ECP5-5G, LatticeECP3, LatticeECP2/M, LatticeXP2, Certus-NX, CertusPro-NX, CrossLink-NX, MachXO5-NX

Image Processing, Video Bridge, DSP, Lattice mVision, Defense, UAVs, Automotive, DSP Bundle

IP Core

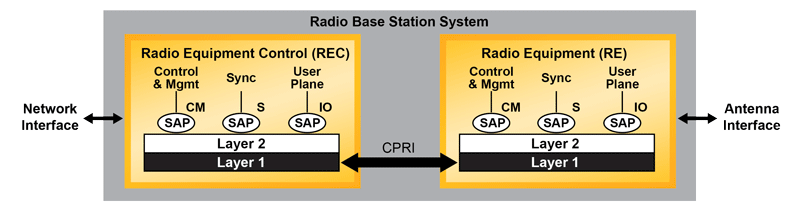

CPRI

Implements the physical layer of the CPRI specification (basic function) and link delay accuracy (low latency character).

LatticeECP3, LatticeSC/M, LatticeECP2/M, ECP5 / ECP5-5G

CPRI, Data Communication

IP Core

数値制御発振器

Also called a Direct Digital Synthesizer (DDS). Supports multiple channels and a Quadrature Amplitude Modulation (QAM) mode, plus other usual configurations

LatticeECP3, LatticeECP2/M, LatticeSC/M, LatticeXP2

DSP

IP Core

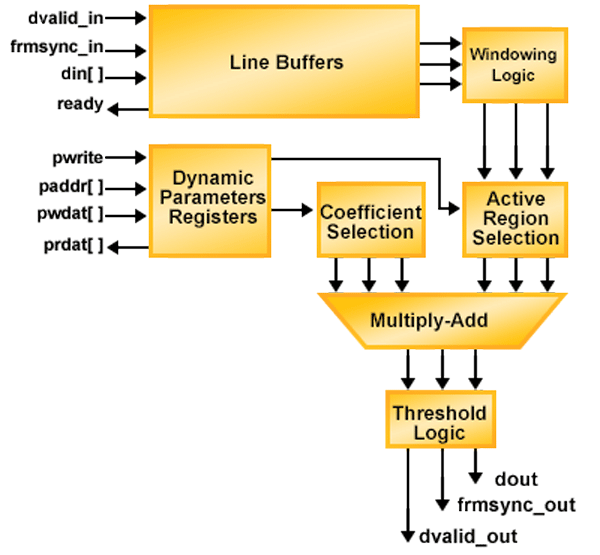

2D Edge Detector

Detects edges in incoming video frames using the Sobel or Prewitt algorithms.

LatticeECP3, LatticeECP2/M, LatticeXP2

Image Processing

IP Core

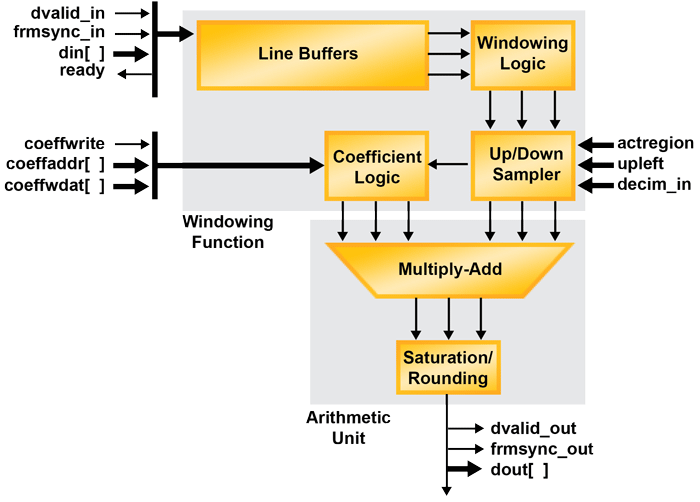

2D FIR Filter

Performs real-time 2D convolution of windowed portions of incoming video frames with coefficient matrices held in internal memory

LatticeECP3, LatticeECP2/M, LatticeXP2

Data Communication, DSP, Image Processing

Reference Design

ADC インターフェース

Interfaces with the Texas Instruments (TI) ADS64XX family of ADCs via LatticeECP3 FPGA high-speed LVDS I/O

LatticeECP3, LatticeECP2/M

ADC/DAC, Guidance Systems, Space, Satellite Communications, Launchers, Smart munitions

IP Core

Median Filter

Popular method of noise removal in signal processing. Supports many video frame sizes.

LatticeECP3, LatticeECP2/M, LatticeXP2

DSP, Image Processing
