TI IP Cameras with Lattice Semiconductors FPGAS

During the holiday period (Dec 24 – Jan 4), response times from our Global Support Team may be longer than usual.

Several TI cameras have been designed with Lattice FPGAs that implement an image sensor bridge as pictured below.

IP camera reference designs for the TI DaVinci DM8127 are availabe for Aptina MT9J003 at www.ti.com/ipcamera and Sony IMX036

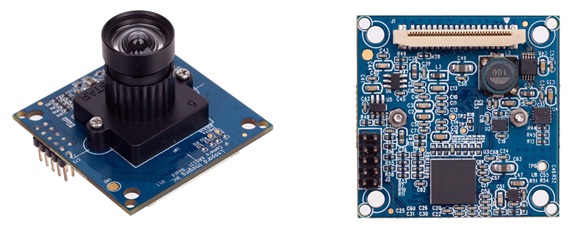

IP camera reference designs for the TI DaVinci DM368 / DM385 are available for the Panasonic MN34041 and Aptina AR0331. These were designed by TI's 3rd party Leopard Imaging.

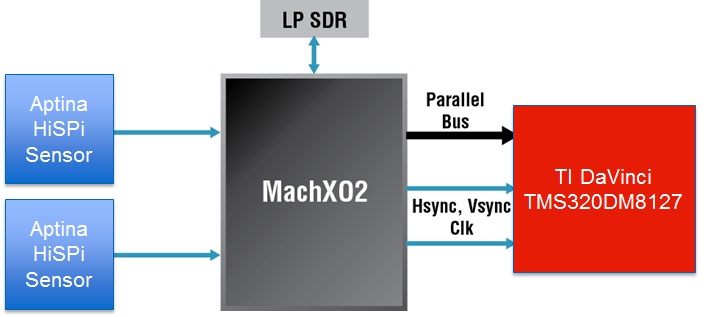

The Lattice MachXO2 dual sensor interface board (DSIB) can be connected to the TI DaVinci TMS320DM8127.

The Lattice MachXO2 dual sensor interface board part number is LCMXO2-4000HE-DSIB-EVN. It can connect ot the TI IP camera that uses the TMS320DM8127. In this configuration TI has run a 3D algorithm that can very accurately "see" objects. This allows TI to offer extremely accurate analytics for surveillance applications. Contact TI for further details on this.
