MIPI Serial Low power Inter-chip Media Bus Interface

Do you need a custom bridge solution to interface to the application processor’s SLIMbus device? Lattice’s ultra-low power FPGAs that come in tiny packages is your best choice.

I/O rich FPGAs - Lattice FPGAs offer multiple I/O banks each capable of supporting independent voltage standards. Use Lattice FPGAs to create your custom bridge solutions.

Intelligent custom bridges - With flexible I/Os, embedded oscillators/PLLs and customizable logic the Lattice FPGA is a perfect choice for your bridging needs.

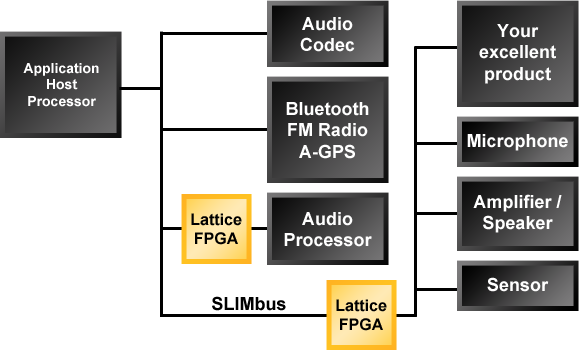

Block Diagram

The block diagram below shows how Lattice FPGAs can create custom bridge solutions to meet your unique requirements.



Information Resources
Select All
Sensor Expansion in Mobile Handsets
SB002 10/18/2012 PDF 437.7 KB
Sensor Mangement via MIPI SLIMbus
SB013 10/17/2012 PDF 520.9 KB
Intelligent Sensor Management
SB003 10/17/2012 PDF 509.4 KB
MIPI Battery Interface Using iCE40
I0224 4.0 10/26/2017 PDF 722.1 KB
Consumer Solutions Brochure
I0222 6.0 10/24/2013 PDF 4.6 MB
