ORT42G5 Evaluation Board

The Lattice ORT42G5 Evaluation Board provides an evaluation and development platform for the Lattice ORT42G5 device. The Lattice ORT42G5 Field-Programmable System Chip (FPSC) is the industry's fastest and most flexible solution for high-speed serial backplane data transmission. Combining 4 channels of up to 3.7Gbps SERDES with more than 400K FPGA gates in one device, the ORT42G5 enables a high-speed SERDES solution that can be easily configured to meet your needs.

Device Support

You will need the following software to use this board:

  • ispLEVER for design, fitting, place & route of Lattice programmable devices
  • ispVM to download your program to the device
  • FPSC configuration software to use the optional ORCAstra GUI

Jump to

Kit Contents

  • ORT42G5 evaluation board, including an ORT42G5-3BM484C device
    • On-board clock source (plus support for external clocks)
    • USB cable for use with Lattice ORCAstra GUI configuration software
    • SMA connections for high-speed SERDES and clocks
  • ICM power module board for complete power management
    • Features Lattice ispPAC-POWR1208 power manager
  • AC adapter (US Standard)
  • ispDOWNLOAD Cable pDS4102-DL2A

Board Photos

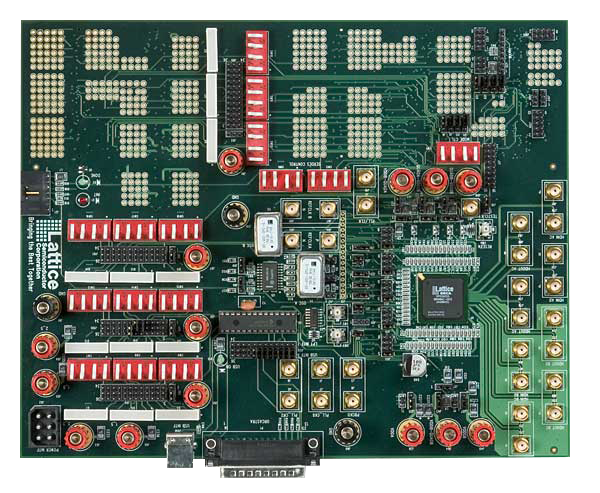

Top View

Click image to enlarge

Ordering Information

  • This product is no longer available for purchase.

  • The information provided here is for reference purposes only.
  • Reference Number: ORT42G5-EV
  • Contact your local Lattice sales representative for further information.


Quick Reference
Information Resources
ORT42G5 Evaluation Board User Manual
Contains User Manual, Tutorial, and sample program for use with the ORT42G5-EV evaluation board.
6/1/2004 ZIP 1.2 MB
Evaluating the ORSO82G5 with the High-Speed SERDES Briefcase Board
4/1/2004 ZIP 130 KB
