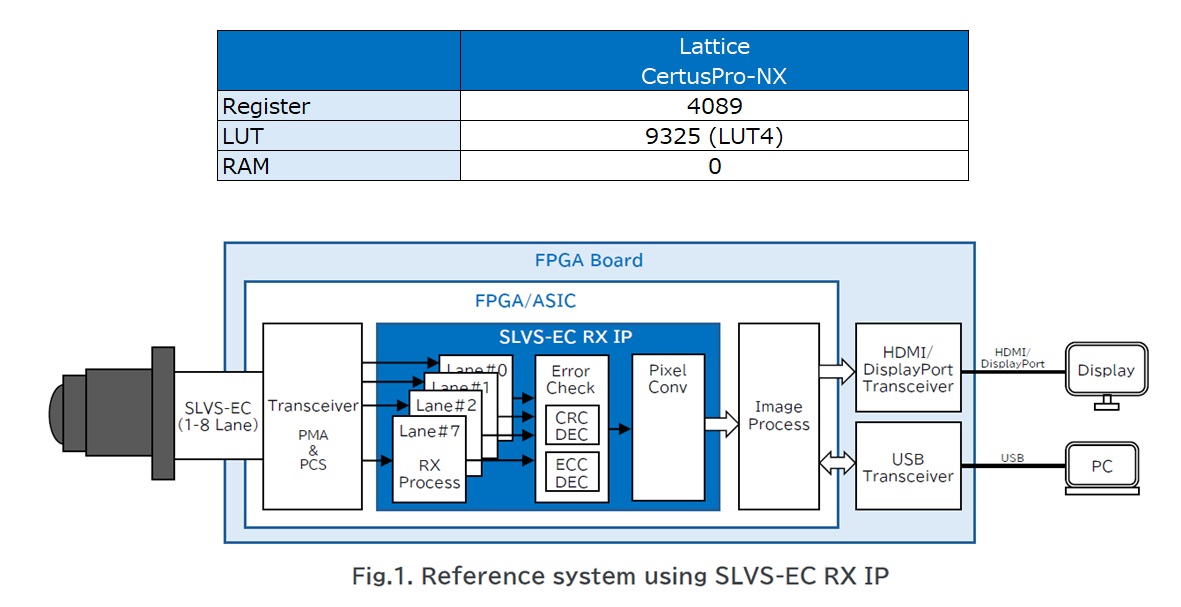

Our SLVS-EC RX IP enables system design with optimum efficiency by minimizing the amount of registers and LUTs used and allocating resources to the main functions.
- SLVS-EC Specification: v2.0 compliant
* Ver. 3.1 is also under development. Please feel free to contact us for further information.
Features
- Baud Grade: 1, 2, 3 (max. 5Gbps)
- Pixel Data: 8, 10, 12, 14, 16bit
- Number of Lanes: 1, 2, 4, 8
- CRC: Supported (On/Off switchable)
- ECC: Optional
