  • USB Type-C Power Delivery Solution

USB Type-C

Fast. Efficient. Flexible.



Solutions

USB Type-C White Paper Download USB Type-C Infographic Ad

USB Type-C enables products to provide faster charging, faster downloads and support other standards such as DisplayPort and MHL over Type-C. Lattice Type-C solutions provide Cable Configuration (CC), Power Delivery (PD) communication required to unlock these benefits. Some parts include integrated switches to simplify the implementation of video output.

Features

  • Cost optimized CC/PD-PHY options
  • Fully integrated CC/PD full stack options
  • Standby power as low as 150uW
  • Integrated USB3.1 and video switch options
  • FPGA options allow full customization
  • ASSP options minimize discrete component requirements

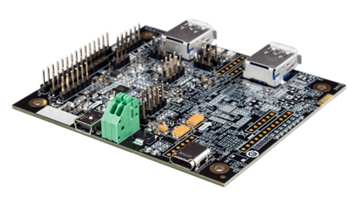

USB Type-C Board

Jump to

Family Table

Part Function SuperSpeed
Switch		 Video Switch Package USB Type-C
Compliance
Sil7012 CC/PD PHY CSP16 1.9 x 1.9 mm v1.1
Sil7013 CC/PD PHY QFN24 3 x 3 mm v1.1
Sil7014 CC/PD PHY DisplayPort
Auxiliary Channel		 QFN24 3 x 3 mm v1.1
Sil7023 CC/PD PHY MHL® QFN24 3 x 3 mm v1.1
Sil7033 CC/PD PHY Yes MHL® BGA36 3 x 3 mm v1.1
UC110 CC/PD QFN48 7 x 7 mm v1.1
UC120 CC/PD PHY WLCSP36 2.08 x 2.08 mm v1.1
UC140 CC/PD BGA81 4 x 4 mm v1.1

Documentation for the LIF-UCxxxx solutions can be found in the Documentation section below. For more details on the SiI70xx products click here.

Documentation

Quick Reference Technical Resources Information Resources Downloads
  TITLE NUMBER VERSION DATE FORMAT SIZE
Lattice USB Type-C Solution Datasheet DS1052 1.3 8/1/2015 PDF 2 MB
  TITLE NUMBER VERSION DATE FORMAT SIZE
USB 3.1 Type-C Hardware Checklist TN1299 1.1 7/22/2015 PDF 435.5 KB
  TITLE NUMBER VERSION DATE FORMAT SIZE
Lattice Type-C Solution Pinout 1.2 6/24/2015 XLSX 49.3 KB
  TITLE NUMBER VERSION DATE FORMAT SIZE
Lattice USB Type-C Solution - Documentation RD1209 1.3 8/1/2015 PDF 3 MB
Lattice USB Type-C Solution- Design Document RD1210 1.2 7/22/2015 PDF 2.9 MB
  TITLE NUMBER VERSION DATE FORMAT SIZE
SiI7012/SiI7013/SiI7014 USB Type-C Port Controllers Product Brief PB001 1.0 9/21/2015 PDF 309 KB
SiI7023/SiI7024/SiI7033 USB Type-C Port Controllers Product Brief PB002 1.0 9/21/2015 PDF 658.9 KB
USB Type-C Product Brochure I0250 1.0 8/18/2015 PDF 826.6 KB
  TITLE NUMBER VERSION DATE FORMAT SIZE
Implementing Flexible USB Type-C Control Using FPGA Technology 1.1 4/1/2015 PDF 1.4 MB
Implementing Flexible USB Type-C Control Using FPGA Technology (Simplified Chinese) 1.1 4/1/2015 PDF 1.9 MB
Implementing Flexible USB Type-C Control Using FPGA Technology (Traditional Chinese) 1.1 4/1/2015 PDF 2 MB
  TITLE NUMBER VERSION DATE FORMAT SIZE
USB Type-C Educational Infographic 1.0 5/21/2015 PNG 652.6 KB
USB Type-C Infographic 1.0 5/21/2015 PDF 754.8 KB
  TITLE NUMBER VERSION DATE FORMAT SIZE
CD/PD for Charger (Captive cable) Schematic Design File 1.6 3/30/2015 DSN 178 KB
CD/PD for Charger (Non-captive cable) Bitstream file 1.1 6/24/2015 BIN 69.7 KB
CD/PD for Charger (Non-captive cable) Schematic Design File 1.7 6/24/2015 DSN 197 KB
CD/PD for Hosts/Devices (with 8-bit microcontroller) Bitstream file 1.1 7/22/2015 ZIP 159.5 KB
CD/PD for Hosts/Devices Bitstream file 1.0 3/30/2015 BIN 132 KB
CD/PD for Hosts/Devices Schematic Design file 1.6 3/30/2015 DSN 179 KB
CD/PD Phy for Hosts/Devices Bitstream file 1.1 6/24/2015 BIN 69.7 KB
CD/PD Phy for Hosts/Devices Schematic Design file 1.3 6/24/2015 DSN 178 KB
Lattice Type-C Solutions Bill of Material 1.2 6/25/2015 XLSX 59.6 KB

Design Resources

Reference Designs Provider iCE40 LP/HX/LM iCE40 Ultra / UltraLite
USB Type-C Cable Detect (CD) and Power Delivery (PD) Lattice
Development Kits & Boards Provider iCE40 LP/HX/LM iCE40 Ultra / UltraLite
iCE40 USB Type-C Demo Kit Lattice

Video Tutorials

Lattice USB Type-C

To enable demonstrations of our USB Type-C solutions to potential customers we have recorded a short video showing our product working as a UFP, DFP and DRP.

Lattice OSM Video

Webcast with host Tom Watzka, Technical Marketing Specialist at Lattice, about the innovation of the USB Type-C connector and Lattice’s implementation technologies and FPGA techniques. “USB Type-C: Will You Be Plugged In?"
