HDMI Mezzanine Card Daughter card

The HDMI Mezzanine Card is a LatticeECP3 Video Protocol Board daughter card designed for demonstrating the Lattice HDMI/DVI solution using LatticeECP3 SERDES. LatticeECP3 Video Protocol Board includes a daughter card connection to support applications that can be implemented using SERDES. This daughter card connection includes three connectors for the signals of a whole SERDES quad, the control/status signals and the power/ground pins.

Note: The HDMI Mezzanine Card cannot be used in stand-alone operation. This product requires the LatticeECP3 Video Protocol Board.

For more information, please visit LatticeECP3 Video Protocol Board

Features

  • Supports two different HDMI/DVI input paths, with or without the cable equalizer
  • Supports HDMI/DVI output with TMDS level shifter
  • TOSLINK fiber optic receiving module for S/PDIF audio input
  • Headers for HPD, CEC controls and the EDID signals
  • ESD protection devices for both HDMI/DVI inputs and HDMI/DVI outputs

Jump to

Kit Contents

  • HDMI Mezzanine Card

Board Photos

Side View

Click image to enlarge

Top View

Click image to enlarge

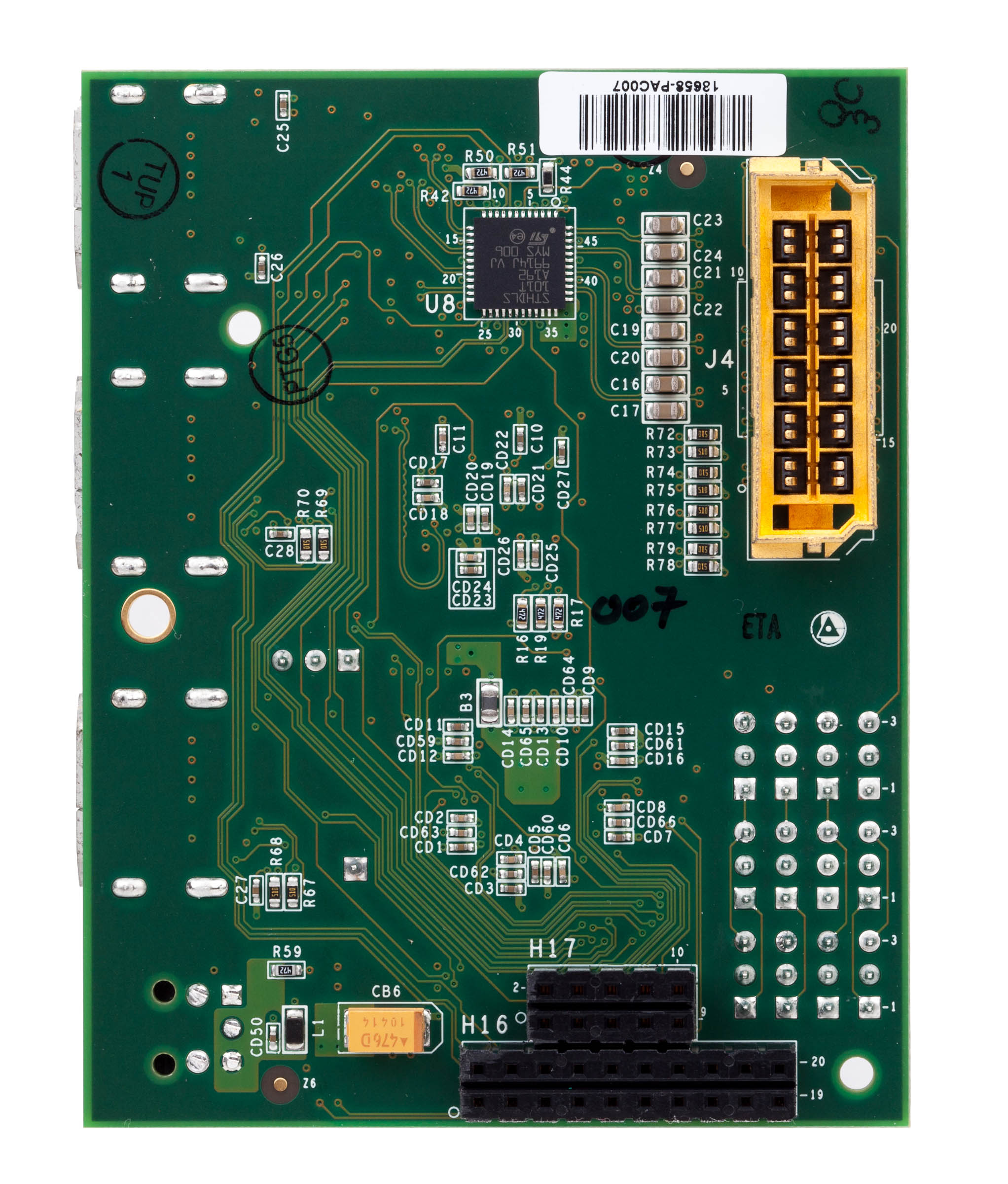

Bottom View

Click image to enlarge

Ordering Information

  • Ordering Part Number: LFE3-MEZZ-EVN
  • Click here to find an authorized Lattice distributor near you
  • Click here to order now from the Lattice Online Store

Documentation

Quick Reference
Technical Resources
TITLE NUMBER VERSION DATE FORMAT SIZE
LatticeECP3 DVI/7:1 LVDS Video Conversion Demo User's Guide
UG37 1.1 2/11/2011 PDF 625.9 KB
HDMI/DVI Loopback Demo User's Guide
UG36 1.0 5/22/2013 PDF 2.2 MB
HDMI Mezzanine Card User's Guide
EB55 1.1 9/24/2012 PDF 1.9 MB
Programming Cable User Guide
Describes the features and recommended usage guidelines of Lattice ispDOWNLOAD Cables.
FPGA-UG-02042 26.4 5/29/2020 PDF 1.4 MB
TITLE NUMBER VERSION DATE FORMAT SIZE
HDMI/DVI Video Interface Reference Design - Source Code
RD1097 1.5 4/1/2015 ZIP 6.8 MB
HDMI/DVI Video Interface Reference Design
RD1097 1.5 4/1/2015 PDF 3.5 MB
